Medium Pressure Female Cap

Rated working pressure: 20,000 PSI / 1,379 bar / 137.9 MPa*

Dimensions & variants

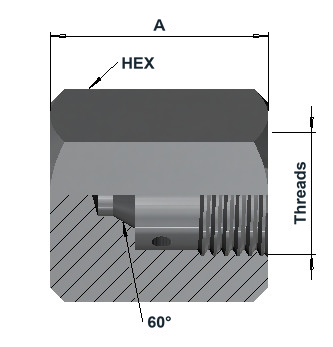

Dimensions in mm

Item number	MP Size	MP Thread	A	Hex
MF04316	1/4" (04)	7/16"-20UN	20	19
MF06316	3/8" (06)	9/16"-18UN	26	22
MF09316	9/16" (09)	13/16"-16UN	30	27
MF12316	3/4" (12)	3/4"-14NPSM	38	36
MF16316	1" (16)	1 3/8"-12UN	50	46
MF24316	1 1/2" (24)	1 7/8"-12UN	66	60

Article number structure

MF | 04 | 316

Series | MP size code | Material

Download Datasheet

Product specifications

Connection — Medium Pressure Female	Configuration	General product information
Type Medium Pressure Female Sealing 60° female cone seat Connection geometry Medium Pressure cone-and-thread MP size and thread See dimensions	Type Cap Connections One sealing connection Sizes See dimensions	Material: AISI 316L / EN 1.4404 / UNS S31603 Working pressure 20,000 PSI / 1,379 bar / 137.9 MPa* HS code 73079900 Country of origin Norway

Technical info

Connections

Medium Pressure female cap. Size and thread are specified in the table.

Working pressure basis*

The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.

IM-MF-20K · HTML DRAFT 01
Layout example based on the group MF datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
