PRODUCT GROUP833010K
JIC 37° Male, Tee
ISO 8434-2
Rated working pressure: 10,000 PSI / 689 bar / 68.9 MPa*

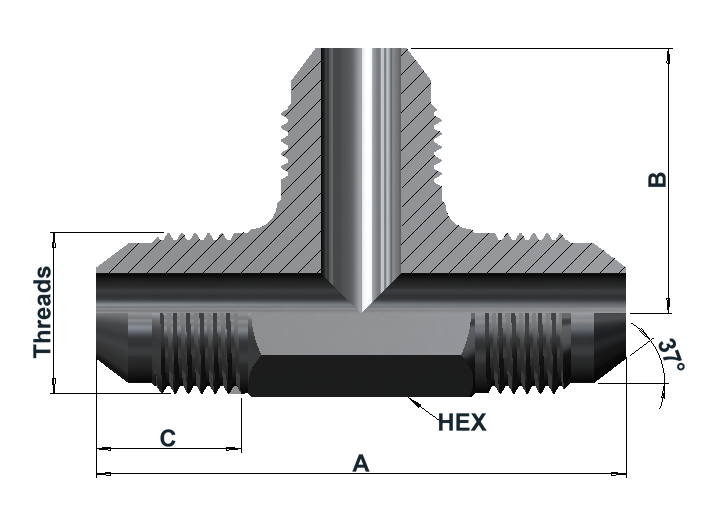

Dimensions & variants
Dimensions in mm
| Item number | JIC | Dash | A | B | C | Hex | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 8330070731610K | 7/16"-20UN | -04 | 53 | 26.5 | 14.5 | 16 | 0.062 |
| 8330080831610K | 1/2"-20UN | -05 | 53 | 26.5 | 14.5 | 16 | 0.060 |
| 8330090931610K | 9/16"-18UN | -06 | 53 | 26.5 | 14.5 | 16 | 0.071 |
| 8330121231610K | 3/4"-16UN | -08 | 63 | 31.5 | 16.5 | 20 | 0.129 |
| 8330141431610K | 7/8"-14UN | -10 | 73 | 36.5 | 20 | 23 | 0.197 |
| 8330171731610K | 1 1/16"-12UN | -12 | 83 | 41.5 | 22 | 28 | 0.318 |
| 8330212131610K | 1 5/16"-12UN | -16 | 94 | 47 | 23 | 34 | 0.560 |
Article number structure
8330 | 12 | 12 | 316 | 10KSeries | JIC thread code | JIC thread code | Material | Pressure class
Product specifications
| Ends 1–3 — JIC Male | Configuration | General product information |
|---|---|---|
|
|
|
Technical info
Connections
JIC ends: 37° flare connections to ISO 8434-2 with UN/UNF threads to ASME B1.1. Equal tee configuration with identical connection size on all three ports.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
