PRODUCT GROUP90006K
JIC 37° Male × NPT Female
ISO 8434-2ASME B1.20.1
Rated working pressure: 6,000 PSI / 414 bar / 41.4 MPa*

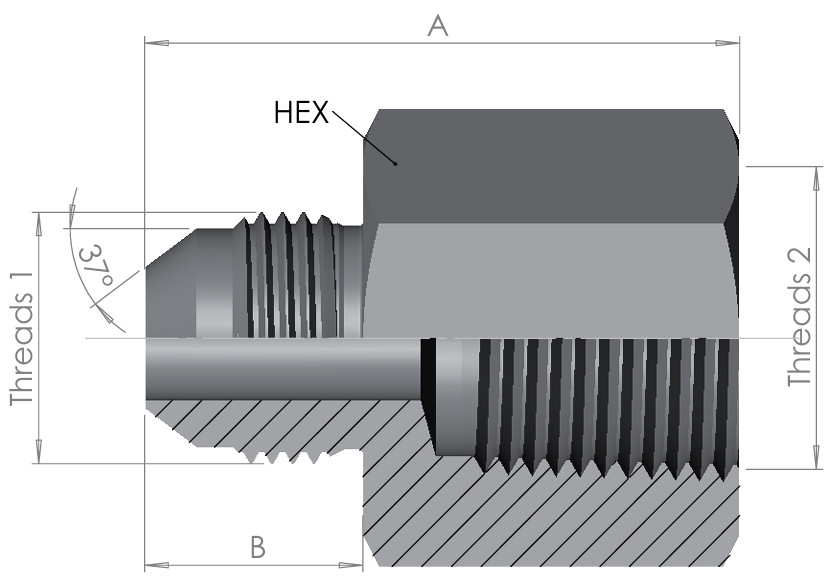

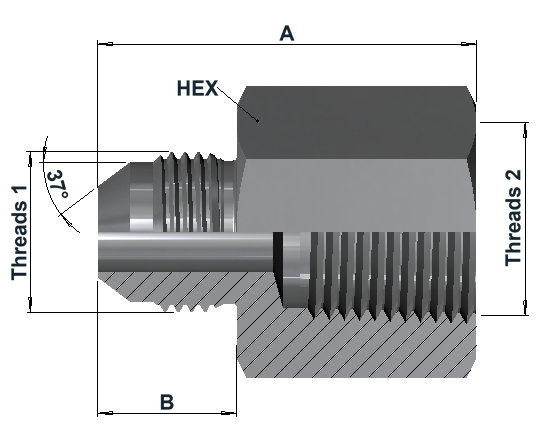

Dimensions & variants
Dimensions in mm
| Item number | JIC Male | Dash | NPT Female | A | B | Hex | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 90000704316 | 7/16"-20UN | -04 | 1/4"NPT | 35 | 14.5 | 19 | 0.041 |
| 90000904316 | 9/16"-18UN | -06 | 1/4"NPT | 35 | 14.5 | 19 | 0.044 |
| 90000906316 | 9/16"-18UN | -06 | 3/8"NPT | 37 | 14.5 | 22 | 0.055 |
| 90001206316 | 3/4"-16UN | -08 | 3/8"NPT | 39 | 16.5 | 22 | 0.063 |
| 90001208316 | 3/4"-16UN | -08 | 1/2"NPT | 45 | 16.5 | 30 | 0.136 |
| 90001712316 | 1 1/16"-12UN | -12 | 3/4"NPT | 52 | 22 | 36 | 0.217 |
| 90002116316 | 1 5/16"-12UN | -16 | 1"NPT | 60 | 23 | 46 | 0.403 |
| 90002620316 | 1 5/8"-12UN | -20 | 1 1/4"NPT | 62 | 24.5 | 55 | |
| 90003024316 | 1 7/8"-12UN | -24 | 1 1/2"NPT | 66 | 27.5 | 60 | |
| 90004032316 | 2 1/2"-12UN | -32 | 2"NPT | 79 | 34 | 75 |
Article number structure
9000 | 12 | 06 | 316 | 6KSeries | JIC male thread code | NPT female thread code | Material | Pressure class
Product specifications
| End 1 — JIC Male | End 2 — NPT Female | General product information |
|---|---|---|
|
|
|
Technical info
Connections
JIC male side: 37° flare connection to ISO 8434-2 with UN/UNF thread to ASME B1.1.
NPT female side: Tapered pipe thread to ASME B1.20.1.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
