PRODUCT GROUP84316K
JIC 37° Male × JIC 37° Female Swivel, Run Tee
ISO 8434-2
Rated working pressure: 6,000 PSI / 414 bar / 41.4 MPa*

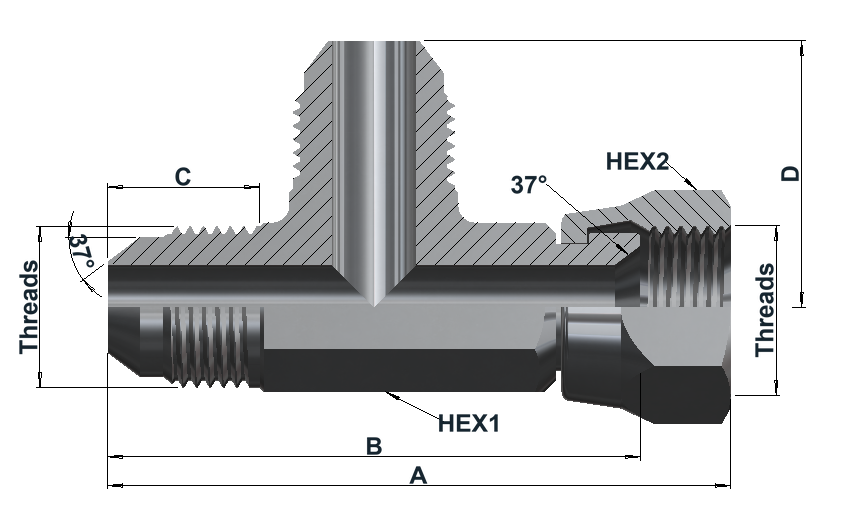

Dimensions & variants
Dimensions in mm
| Item number | JIC | Dash | A | B | C | D | Hex1 | Hex2 | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 84310707316 | 7/16"-20UN | -04 | 53 | 34.5 | 14.5 | 26.5 | 16 | 17 | 0.082 |
| 84310909316 | 9/16"-18UN | -06 | 53 | 35.5 | 14.5 | 26.5 | 16 | 19 | 0.095 |
| 84311212316 | 3/4"-16UN | -08 | 63 | 41.5 | 16.5 | 31.5 | 20 | 24 | 0.161 |
| 84311414316 | 7/8"-14UN | -10 | 73 | 47.5 | 20 | 36.5 | 23 | 27 | 0.275 |
| 84311717316 | 1 1/16"-12UN | -12 | 83 | 55.5 | 22 | 41.5 | 28 | 32 | 0.377 |
| 84312121316 | 1 5/16"-12UN | -16 | 94 | 61 | 23 | 47 | 34 | 41 | 0.624 |
Article number structure
8431 | 12 | 12 | 316 | 6KSeries | JIC male thread code | JIC female thread code | Material | Pressure class
Product specifications
| Male ends — JIC Male | End 2 — JIC 37\u00b0 Female Swivel | General product information |
|---|---|---|
|
|
|
Technical info
Connections
JIC male sides: 37° flare connections to ISO 8434-2 with UN/UNF threads to ASME B1.1.
JIC female swivel side: 37° flare swivel connection to ISO 8434-2 with UN/UNF thread to ASME B1.1.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
