PRODUCT GROUP839010K
JIC 37° Male, Elbow 90°
ISO 8434-2
Rated working pressure: 10,000 PSI / 689 bar / 68.9 MPa*

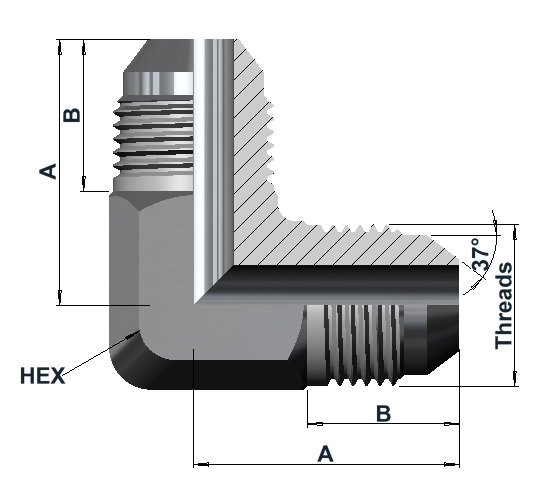

Dimensions & variants
Dimensions in mm
| Item number | JIC Male 1 | Dash 1 | JIC Male 2 | Dash 2 | A | B | Hex | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 8390070731610K | 7/16"-20UN | -04 | 7/16"-20UN | -04 | 26.5 | 14.5 | 16 | 0.047 |
| 8390080831610K | 1/2"-20UN | -05 | 1/2"-20UN | -05 | 26.5 | 14.5 | 16 | 0.052 |
| 8390090931610K | 9/16"-18UN | -06 | 9/16"-18UN | -06 | 26.5 | 14.5 | 16 | 0.055 |
| 8390121231610K | 3/4"-16UN | -08 | 3/4"-16UN | -08 | 31.5 | 16.5 | 20 | 0.102 |
| 8390141431610K | 7/8"-14UN | -10 | 7/8"-14UN | -10 | 36.5 | 20 | 23 | 0.151 |
| 8390171731610K | 1 1/16"-12UN | -12 | 1 1/16"-12UN | -12 | 41.5 | 22 | 28 | 0.200 |
| 8390212131610K | 1 5/16"-12UN | -16 | 1 5/16"-12UN | -16 | 47 | 23 | 34 | 0.400 |
Article number structure
8390 | 12 | 12 | 316 | 10KSeries | JIC thread code 1 | JIC thread code 2 | Material | Pressure class
Product specifications
| End 1 — JIC Male | End 2 — JIC Male | General product information |
|---|---|---|
|
|
|
Technical info
Connections
JIC sides: 37° flare connections to ISO 8434-2 with UN/UNF threads to ASME B1.1. 90° elbow configuration with identical connection size on both ends.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
