JIC 37° Male × JIC 37° Female Swivel

ISO 8434-2

Rated working pressure: 6,000 PSI / 414 bar / 41.4 MPa*

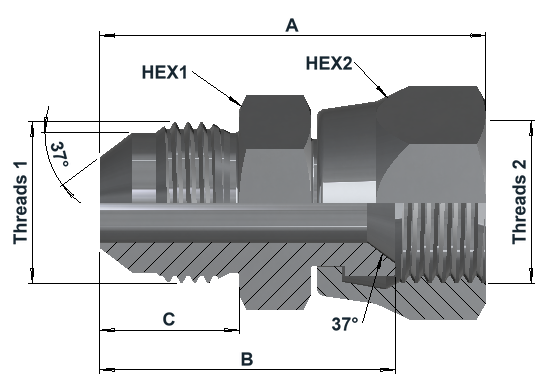

8400 6K JIC 37° Male × JIC 37° Female Swivel dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	JIC Male	Dash 1	JIC Female	Dash 2	A	B	C	Hex1	Hex2	Weight (kg)
84000707316	7/16"-20UN	-04	7/16"-20UN	-04	39	30.5	14.5	14	17	0.034
84000708316	7/16"-20UN	-04	1/2"-20UN	-05	39	30.5	14.5	14	17	0.037
84000709316	7/16"-20UN	-04	9/16"-18UN	-06	41	31.5	14.5	14	19	0.040
84000712316	7/16"-20UN	-04	3/4"-16UN	-08	39	29	14.5	0	24	0.049
84000807316	1/2"-20UN	-05	7/16"-20UN	-04	38	30.5	14.5	14	17	0.040
84000808316	1/2"-20UN	-05	1/2"-20UN	-05	39	30.5	14.5	14	17	0.040
84000809316	1/2"-20UN	-05	9/16"-18UN	-06	41	31.5	14.5	14	19	0.045
84000907316	9/16"-18UN	-06	7/16"-20UN	-04	39	31	14.5	17	17	0.046
84000908316	9/16"-18UN	-06	1/2"-20UN	-05	39	31	14.5	17	17	0.046
84000909316	9/16"-18UN	-06	9/16"-18UN	-06	41	32	14.5	17	19	0.049
84000912316	9/16"-18UN	-06	3/4"-16UN	-08	43	33	14.5	19	24	0.067
84000914316	9/16"-18UN	-06	7/8"-14UN	-10	43	30.5	14.5	0	27	0.100
84000917316	9/16"-18UN	-06	1 1/16"-12UN	-12	45	31	14.5	0	32	0.130
84000921316	9/16"-18UN	-06	1 5/16"-12UN	-16	46	33	14.5	0	38	0.170
84001207316	3/4"-16UN	-08	7/16"-20UN	-04	42	34	16.5	22	17	0.073
84001209316	3/4"-16UN	-08	9/16"-18UN	-06	43	34	16.5	22	19	0.076
84001212316	3/4"-16UN	-08	3/4"-16UN	-08	45	35	16.5	22	24	0.082
84001214316	3/4"-16UN	-08	7/8"-14UN	-10	48	36	16.5	22	27	0.097
84001217316	3/4"-16UN	-08	1 1/16"-12UN	-12	47	33	16.5	0	32	0.131
84001221316	3/4"-16UN	-08	1 5/16"-12UN	-16	48	33	16.5	0	38	0.174
84001412316	7/8"-14UN	-10	3/4"-16UN	-08	49	39	20	24	24	0.110
84001414316	7/8"-14UN	-10	7/8"-14UN	-10	52	40	20	24	27	0.111
84001417316	7/8"-14UN	-10	1 1/16"-12UN	-12	57	43	20	27	32	0.159
84001709316	1 1/16"-12UN	-12	9/16"-18UN	-06	50.5	41	22	30	19	0.159
84001712316	1 1/16"-12UN	-12	3/4"-16UN	-08	52	42	22	30	24	0.161
84001714316	1 1/16"-12UN	-12	7/8"-14UN	-10	55	43	22	30	27	0.180
84001717316	1 1/16"-12UN	-12	1 1/16"-12UN	-12	60	46	22	30	32	0.182
84001721316	1 1/16"-12UN	-12	1 5/16"-12UN	-16	61	46	22	32	41	0.264
84001726316	1 1/16"-12UN	-12	1 5/8"-12UN	-20	57	40	22	0	50
84002117316	1 5/16"-12UN	-16	1 1/16"-12UN	-12	62	48	23	36	32	0.267
84002121316	1 5/16"-12UN	-16	1 5/16"-12UN	-16	63	48	23	36	41	0.202
84002126316	1 5/16"-12UN	-16	1 5/8"-12UN	-20	58	41	23	0	50
84002621316	1 5/8"-12UN	-20	1 5/16"-12UN	-16	65	50	24.5	46	41	0.446
84002626316	1 5/8"-12UN	-20	1 5/8"-12UN	-20	68	52	24.5	46	50	0.483
84002630316	1 5/8"-12UN	-20	1 7/8"-12UN	-24	65	46.5	24.5	0	55	0.590
84003026316	1 7/8"-12UN	-24	1 5/8"-12UN	-20	75	56.5	27.5	50	50	0.655
84003030316	1 7/8"-12UN	-24	1 7/8"-12UN	-24	76	58	27.5	50	55	0.750

Article number structure

8400 | 12 | 17 | 316 | 6K

Series | JIC male thread code | JIC female thread code | Material | Pressure class

Download Datasheet

Product specifications

End 1 — JIC Male	End 2 — JIC 37\u00b0 Female Swivel	General product information
Type JIC Male Sealing 37° flare Connection standards ISO 8434-2 Thread standard ASME B1.1	Type JIC 37\u00b0 Female Swivel Sealing 37° flare Connection standards ISO 8434-2 Thread standard ASME B1.1	Material: AISI 316L / EN 1.4404 / UNS S31603 Working pressure 6,000 PSI / 414 bar / 41.4 MPa* HS code 73079900 Country of origin Norway

Technical info

Connections

JIC male side: 37° flare connection to ISO 8434-2 with UN/UNF thread to ASME B1.1.

JIC female swivel side: 37° flare swivel connection to ISO 8434-2 with UN/UNF thread to ASME B1.1.

Working pressure basis*

The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.

IM-8400-6K · HTML DRAFT 01
Layout example based on the group 8400 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
