PRODUCT GROUP863010K
JIC 37° Female Swivel, Tee
ISO 8434-2
Rated working pressure: 10,000 PSI / 689 bar / 68.9 MPa*

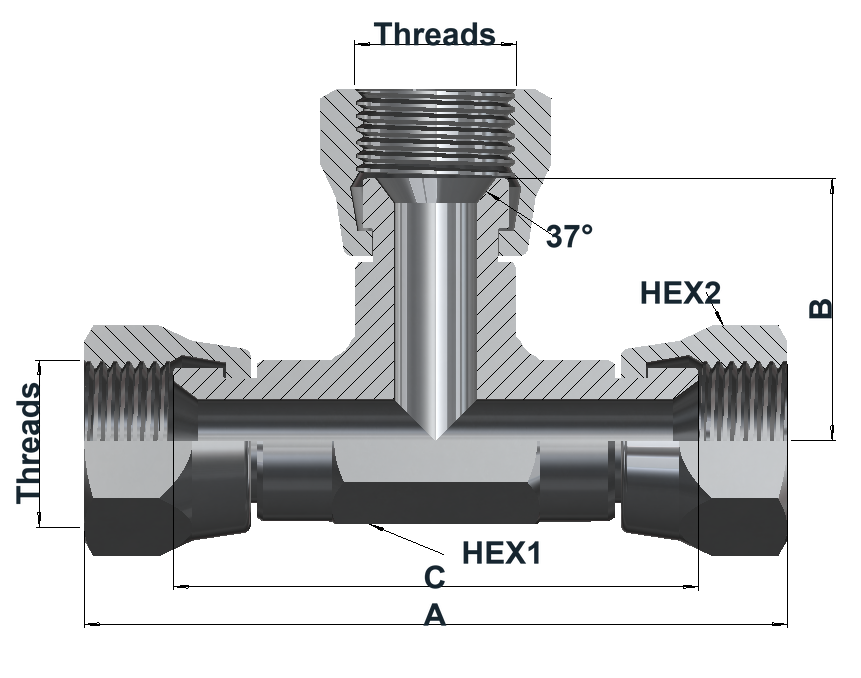

Dimensions & variants
Dimensions in mm
| Item number | JIC Female | Dash | A | B | C | Hex1 | Hex2 | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 8630070731610K | 7/16"-20UN | -04 | 70 | 26.5 | 53 | 16 | 17 | 0.126 |
| 8630090931610K | 9/16"-18UN | -06 | 71 | 26.5 | 53 | 16 | 19 | 0.135 |
| 8630121231610K | 3/4"-16UN | -08 | 83 | 31.5 | 63 | 20 | 27 | 340.000 |
| 8630141431610K | 7/8"-14UN | -10 | 97 | 36.5 | 73 | 23 | 32 | |
| 8630171731610K | 1 1/16"-12UN | -12 | 109 | 41.5 | 83 | 28 | 36 | |
| 8630212131610K | 1 5/16"-12UN | -16 | 124 | 47 | 94 | 34 | 46 |
Article number structure
8630 | 12 | 12 | 316 | 10KSeries | JIC thread code 1 | JIC thread code 2 | Material | Pressure class
Product specifications
| Ends 1–3 — JIC 37\u00b0 Female Swivel | Configuration | General product information |
|---|---|---|
|
|
|
Technical info
Connections
JIC female swivel ends: 37° flare swivel connections to ISO 8434-2 with UN/UNF threads to ASME B1.1. Equal tee configuration with identical connection size on all three ports.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
