Series 9750

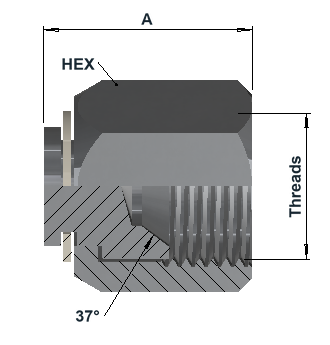

JIC Female Swivel Cap 6K

Standard

ISO8434-2

Default material

Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)

Also available in

Duplex SuperDuplex (750) SuperDuplex (760) SMO254®(6MO) S165M Hastelloy®C-276 Inconel®625 Inconel®718 Incoloy®925 17-4PH Nitronic®50 Nitronic®60 Titan Grad2 Titan Grad5

Product Code	Thread Dim 1	A	Hex 1	Material Code	Work Pressure
97500707316	7/16"-20UN	15.5	14	SS316	6000PSI
97500808316	1/2"-20UN	17	17	SS316	6000PSI
97500909316	9/16"-18UN	18.3	19	SS316	6000PSI
97501212316	3/4"-16UN	21.3	22	SS316	6000PSI
97501414316	7/8"-14UN	24.5	27	SS316	6000PSI
97501717316	1 1/16"-12UN	26	32	SS316	6000PSI
97502121316	1 5/16"-12UN	28.5	38	SS316	6000PSI
97502626316	1 5/8"-12UN	31	50	SS316	6000PSI
97503030316	1 7/8"-12UN	36	55	SS316	6000PSI
97504040316	2 1/2"-12UN	44	75	SS316	6000PSI

JIC Female Swivel Cap 6K
