JIC 37° Female Cap

ISO 8434-2

Rated working pressure: 10,000 PSI / 689 bar / 68.9 MPa*

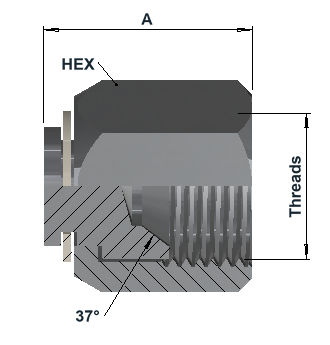

9750 10K JIC 37° Female Cap dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	JIC Thread	Dash	A	Hex
9750070731610K	7/16"-20UN	-04	15.5	17
9750080831610K	1/2"-20UN	-05	17	19
9750090931610K	9/16"-18UN	-06	18.3	22
9750121231610K	3/4"-16UN	-08	21.3	27
9750141431610K	7/8"-14UN	-10	24.5	32
9750171731610K	1 1/16"-12UN	-12	26	36
9750212131610K	1 5/16"-12UN	-16	28.5	46

Article number structure

9750 | 12 | 12 | 316 | 10K

Series | JIC thread code | JIC thread code | Material | Pressure class

Download Datasheet

Product specifications

Connection — JIC Female	Configuration	General product information
Type JIC Female Sealing 37° flare Connection standards ISO 8434-2 Thread standard ASME B1.1	Type Cap Connections One threaded port Sizes See dimensions	Material: AISI 316L / EN 1.4404 / UNS S31603 Working pressure 10,000 PSI / 689 bar / 68.9 MPa* HS code 73079900 Country of origin Norway

Technical info

Connections

JIC female side: 37° flare connection to ISO 8434-2 with UN/UNF thread to ASME B1.1. Cap configuration for closing a mating JIC male connection.

Working pressure basis*

The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.

IM-9750-10K · HTML DRAFT 01
Layout example based on the group 9750 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
