PRODUCT GROUP86906K
JIC 37° Female Swivel, Elbow 90°
ISO 8434-2
Rated working pressure: 6,000 PSI / 414 bar / 41.4 MPa*

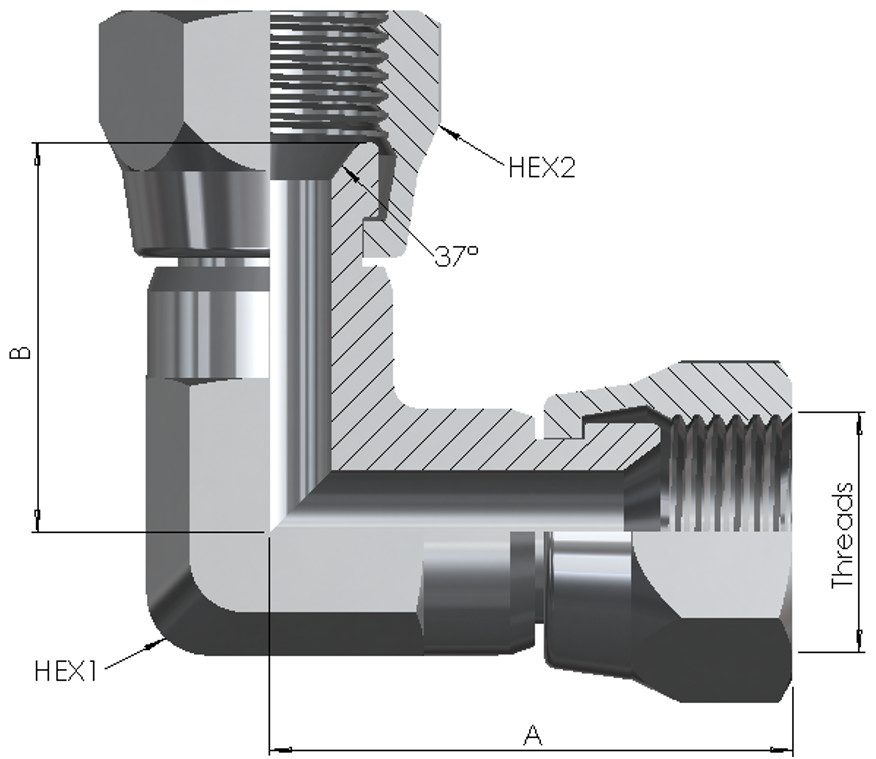

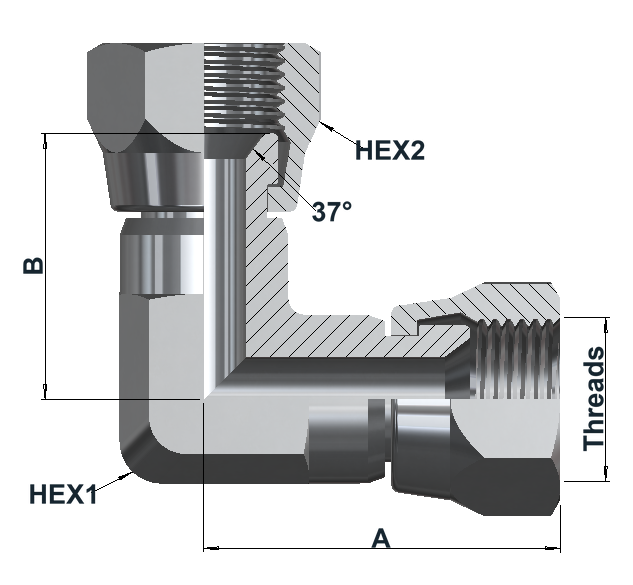

Dimensions & variants
Dimensions in mm
| Item number | JIC Female 1 | Dash 1 | JIC Female 2 | Dash 2 | A | B | Hex1 | Hex2 | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 86900707316 | 7/16"-20UN | -04 | 7/16"-20UN | -04 | 35 | 26.5 | 16 | 17 | 0.092 |
| 86900909316 | 9/16"-18UN | -06 | 9/16"-18UN | -06 | 35.5 | 26.5 | 16 | 19 | 0.100 |
| 86901212316 | 3/4"-16UN | -08 | 3/4"-16UN | -08 | 41.5 | 31.5 | 20 | 24 | 0.161 |
| 86901414316 | 7/8"-14UN | -10 | 7/8"-14UN | -10 | 48.5 | 36.5 | 23 | 27 | |
| 86901717316 | 1 1/16"-12UN | -12 | 1 1/16"-12UN | -12 | 54.5 | 41.5 | 28 | 32 | 0.370 |
| 86902121316 | 1 5/16"-12UN | -16 | 1 5/16"-12UN | -16 | 62 | 47 | 34 | 41 | 0.634 |
| 86902626316 | 1 5/8"-12UN | -20 | 1 5/8"-12UN | -20 | 69 | 52.5 | 44 | 50 | |
| 86903030316 | 1 7/8"-12UN | -24 | 1 7/8"-12UN | -24 | 78 | 60 | 52 | 55 | |
| 86904040316 | 2 1/2"-12UN | -32 | 2 1/2"-12UN | -32 | 94 | 71 | 62 | 75 |
Article number structure
8690 | 12 | 12 | 316 | 6KSeries | JIC female thread code 1 | JIC female thread code 2 | Material | Pressure class
Product specifications
| End 1 — JIC 37\u00b0 Female Swivel | End 2 — JIC 37\u00b0 Female Swivel | General product information |
|---|---|---|
|
|
|
Technical info
Connections
JIC female swivel sides: 37° flare swivel connections to ISO 8434-2 with UN/UNF threads to ASME B1.1. 90° elbow configuration with identical connection size on both ends.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
