PRODUCT GROUPHMF930015K
High Pressure Male Fixed × NPT Male
ASME B1.20.1
Rated working pressure: 15,000 PSI / 1,034 bar / 103.4 MPa*

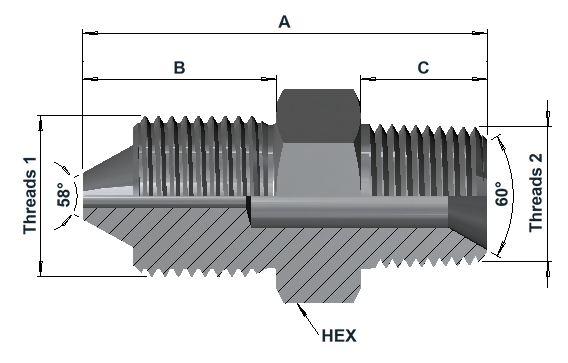

Dimensions & variants
Dimensions in mm
| Item number | HP Size | HP Thread | NPT Thread | A | B | C | Hex |
|---|---|---|---|---|---|---|---|
| HMF93000404316 | 1/4" (04) | 9/16"-18UN | 1/4"NPT | 41.5 | 16 | 14 | 17 |
| HMF93000406316 | 1/4" (04) | 9/16"-18UN | 3/8"NPT | 44 | 16 | 15 | 19 |
| HMF93000408316 | 1/4" (04) | 9/16"-18UN | 1/2"NPT | 49 | 16 | 19 | 22 |
| HMF93000604316 | 3/8" (06) | 3/4"-16UN | 1/4"NPT | 44 | 23 | 14 | 17 |
| HMF93000606316 | 3/8" (06) | 3/4"-16UN | 3/8"NPT | 46 | 23 | 15 | 19 |
| HMF93000608316 | 3/8" (06) | 3/4"-16UN | 1/2"NPT | 51 | 23 | 19 | 22 |
| HMF93000904316 | 9/16" (09) | 1 1/8"-12UN | 1/4"NPT | 50 | 27 | 14 | 22 |
| HMF93000906316 | 9/16" (09) | 1 1/8"-12UN | 3/8"NPT | 51 | 27 | 15 | 22 |
| HMF93000908316 | 9/16" (09) | 1 1/8"-12UN | 1/2"NPT | 55 | 27 | 19 | 22 |
Article number structure
HMF9300 | 09 | 08 | 316Series | HP size code | NPT size code | Material
Product specifications
| End 1 — High Pressure Male Fixed | End 2 — NPT Male | General product information |
|---|---|---|
|
|
|
Technical info
Connections
High Pressure side: 58° male cone geometry, mating against a 60° female cone seat.
NPT side: Tapered pipe thread to ASME B1.20.1.
Dimensionally compatible with the established High Pressure cone-and-thread connection geometry.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
