High Pressure Male Fixed × Medium Pressure Female
Rated working pressure: 20,000 PSI / 1,379 bar / 137.9 MPa*

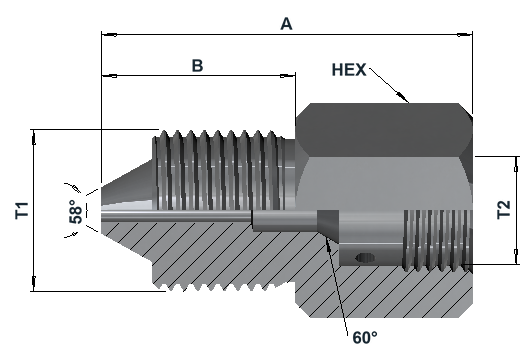

Dimensions & variants
Dimensions in mm
| Item number | HP Size | HP Thread | MP Size | MP Thread | A | B | Hex |
|---|---|---|---|---|---|---|---|
| HMF04MF04316 | 1/4" (04) | 9/16"-18UN | 1/4" (04) | 7/16"-20UN | 32 | 16 | 19 |
| HMF04MF06316 | 1/4" (04) | 9/16"-18UN | 3/8" (06) | 9/16"-18UN | 36 | 16 | 22 |
| HMF04MF09316 | 1/4" (04) | 9/16"-18UN | 9/16" (09) | 13/16"-16UN | 46 | 16 | 36 |
| HMF06MF04316 | 3/8" (06) | 3/4"-16UN | 1/4" (04) | 7/16"-20UN | 42 | 23 | 22 |
| HMF06MF06316 | 3/8" (06) | 3/4"-16UN | 3/8" (06) | 9/16"-18UN | 44 | 23 | 22 |
| HMF06MF09316 | 3/8" (06) | 3/4"-16UN | 9/16" (09) | 13/16"-16UN | 48 | 23 | 27 |
| HMF09MF04316 | 9/16" (09) | 1 1/8"-12UN | 1/4" (04) | 7/16"-20UN | 37 | 27 | 30 |
| HMF09MF06316 | 9/16" (09) | 1 1/8"-12UN | 3/8" (06) | 9/16"-18UN | 37 | 27 | 30 |
| HMF09MF09316 | 9/16" (09) | 1 1/8"-12UN | 9/16" (09) | 13/16"-16UN | 55 | 27 | 30 |
Article number structure
HMF04 | MF04 | 316HP male + size | MP female + size | Material
Product specifications
| End 1 — High Pressure Male Fixed | End 2 — Medium Pressure Female | General product information |
|---|---|---|
|
|
|
Technical info
Connections
58° High Pressure male cone geometry at port 1.
60° Medium Pressure female cone geometry at port 2.
Dimensionally compatible with the established High Pressure and Medium Pressure cone-and-thread connection geometries for the stated sizes.
Working pressure of the adapter assembly is 20,000 psi / 1,379 bar / 137.9 MPa.*
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
