High Pressure Male Fixed × JIC 37° Female Fixed
Rated working pressure: 15,000 PSI / 1,034 bar / 103.4 MPa*

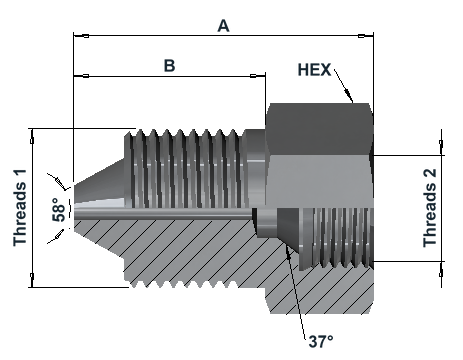

Dimensions & variants
Dimensions in mm
| Item number | HP Size | HP Thread | JIC 37° Thread | Dash | A | B | Hex |
|---|---|---|---|---|---|---|---|
| HMF86000407316 | 1/4" (04) | 9/16"-18UN | 7/16"-20UN | -04 | 30 | 16 | 22 |
| HMF86000409316 | 1/4" (04) | 9/16"-18UN | 9/16"-18UN | -06 | 32 | 16 | 22 |
| HMF86000607316 | 3/8" (06) | 3/4"-16UN | 7/16"-20UN | -04 | 38 | 23 | 22 |
| HMF86000609316 | 3/8" (06) | 3/4"-16UN | 9/16"-18UN | -06 | 38 | 23 | 22 |
| HMF86000612316 | 3/8" (06) | 3/4"-16UN | 3/4"-16UN | -08 | 40 | 23 | 30 |
| HMF86000907316 | 9/16" (09) | 1 1/8"-12UN | 7/16"-20UN | -04 | 42 | 27 | 30 |
| HMF86000909316 | 9/16" (09) | 1 1/8"-12UN | 9/16"-18UN | -06 | 42 | 27 | 30 |
| HMF86000912316 | 9/16" (09) | 1 1/8"-12UN | 3/4"-16UN | -08 | 44 | 27 | 30 |
Article number structure
HMF8600 | 09 | 12 | 316Series | HP size code | JIC size code | Material
Product specifications
| End 1 — High Pressure Male Fixed | End 2 — JIC FeMale Fixed | General product information |
|---|---|---|
|
|
|
Technical info
Connections
High Pressure side: 58° male cone geometry, mating against a 60° female cone seat.
JIC side: 37° female flare connection. JIC dash size is shown in the table for all JIC thread sizes.
Dimensionally compatible with the established 60,000 psi High Pressure cone-and-thread connection geometry.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
