High Pressure Male Fixed × BSP Male
Rated working pressure: 15,000 PSI / 1,034 bar / 103.4 MPa*

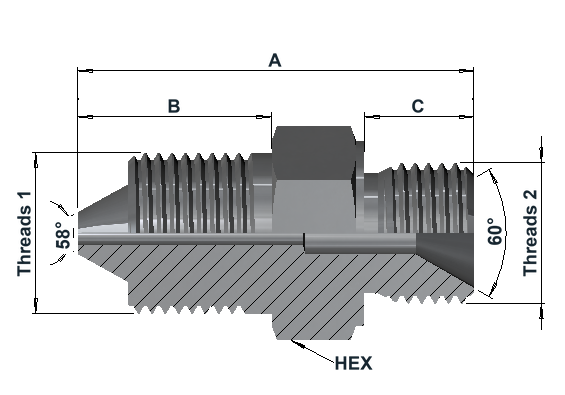

Dimensions & variants
Dimensions in mm
| Item number | HP Size | HP Thread | BSPP Thread | A | B | C | Hex |
|---|---|---|---|---|---|---|---|
| HMF55000404316 | 1/4" (04) | 9/16"-18UN | G 1/4" | 36 | 16 | 11 | 19 |
| HMF55000406316 | 1/4" (04) | 9/16"-18UN | G 3/8" | 38 | 16 | 13 | 22 |
| HMF55000408316 | 1/4" (04) | 9/16"-18UN | G 1/2" | 40 | 16 | 15 | 27 |
| HMF55000604316 | 3/8" (06) | 3/4"-16UN | G 1/4" | 43 | 23 | 11 | 22 |
| HMF55000606316 | 3/8" (06) | 3/4"-16UN | G 3/8" | 45 | 23 | 13 | 22 |
| HMF55000608316 | 3/8" (06) | 3/4"-16UN | G 1/2" | 50 | 23 | 15 | 27 |
| HMF55000904316 | 9/16" (09) | 1 1/8"-12UN | G 1/4" | 49 | 27 | 11 | 27 |
| HMF55000906316 | 9/16" (09) | 1 1/8"-12UN | G 3/8" | 51 | 27 | 13 | 27 |
| HMF55000908316 | 9/16" (09) | 1 1/8"-12UN | G 1/2" | 53 | 27 | 15 | 27 |
Article number structure
HMF5500 | 04 | 04 | 316Series | HP size code | BSP size code | Material
Product specifications
| End 1 — High Pressure Male Fixed | End 2 — BSPP Male | General product information |
|---|---|---|
|
|
|
Technical info
Connections
High Pressure side: 58° male cone geometry, mating against a 60° female cone seat.
BSPP side: Parallel G thread to ISO 228-1. The connection may be sealed either on the 60° internal cone to ISO 8434-6, or against the external shoulder using an elastomeric bonded seal to ISO 1179-2.
Dimensionally compatible with the established 60,000 psi High Pressure cone-and-thread connection geometry.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
