PRODUCT GROUPHMF-HMF60K
High Pressure Male Fixed / Male Fixed
Rated working pressure: 60,000 PSI / 4,137 bar / 413.7 MPa*
Dimensions & variants

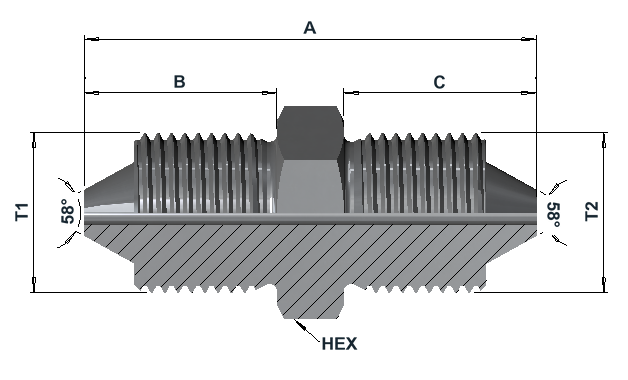

Dimensions in mm
| Item number | HP Size 1 | HP Thread 1 | HP Size 2 | HP Thread 2 | A | B | C | Hex |
|---|---|---|---|---|---|---|---|---|
| HMF04HMF04316 | 1/4" (04) | 9/16"-18UN | 1/4" (04) | 9/16"-18UN | 40 | 16 | 16 | 17 |
| HMF04HMF06316 | 1/4" (04) | 9/16"-18UN | 3/8" (06) | 3/4"-16UN | 47 | 16 | 23 | 22 |
| HMF04HMF09316 | 1/4" (04) | 9/16"-18UN | 9/16" (09) | 1 1/8"-12UN | 53 | 16 | 27 | 30 |
| HMF06HMF06316 | 3/8" (06) | 3/4"-16UN | 3/8" (06) | 3/4"-16UN | 54 | 23 | 23 | 22 |
| HMF06HMF09316 | 3/8" (06) | 3/4"-16UN | 9/16" (09) | 1 1/8"-12UN | 60 | 23 | 27 | 30 |
| HMF09HMF09316 | 9/16" (09) | 1 1/8"-12UN | 9/16" (09) | 1 1/8"-12UN | 64 | 27 | 27 | 30 |
Article number structure
HMF04 | HMF09 | 316Male end + size | Male end + size | Material
Product specifications
| End 1 — High Pressure Male Fixed | End 2 — High Pressure Male Fixed | General product information |
|---|---|---|
|
|
|
Technical info
Connections
58° male cone geometry on both ends, intended to mate with 60° female cone seats.
Dimensionally compatible with the established 60,000 psi High Pressure cone-and-thread connection geometry.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
