High Pressure Male Fixed Plug

Rated working pressure: 60,000 PSI / 4,137 bar / 413.7 MPa*

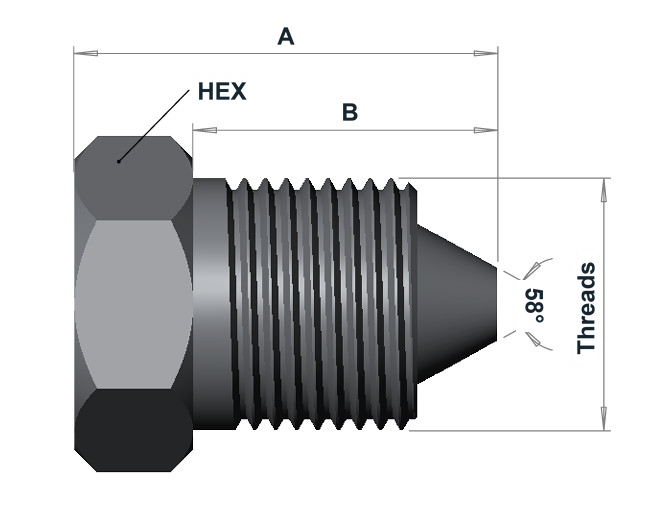

Dimensions & variants

Dimensions in mm

Item number	HP Size	HP Thread	A	B	Hex
HMF04316	1/4" (04)	9/16"-18UN	25	16	17
HMF06316	3/8" (06)	3/4"-16UN	32	23	22
HMF09316	9/16" (09)	1 1/8"-12UN	64	27	30

Article number structure

HMF | 04 | 316

Series | HP size code | Material

Download Datasheet

Product specifications

Connection — High Pressure Male Fixed	Configuration	General product information
Type High Pressure Male Fixed Sealing 58° male cone / 60° female cone seat Connection geometry High Pressure cone-and-thread HP size and thread See dimensions	Type Plug Connections One sealing connection Sizes See dimensions	Material: AISI 316L / EN 1.4404 / UNS S31603 Working pressure 60,000 PSI / 4,137 bar / 413.7 MPa* HS code 73079900 Country of origin Norway

Technical info

Connections

High Pressure Male Fixed Plug. Sizes are specified in the table.

Working pressure basis*

The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.

IM-HMF-60K · HTML DRAFT 01
Layout example based on the group HMF datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
