High Pressure Gland

Rated working pressure: 60,000 PSI / 4,137 bar / 413.7 MPa*

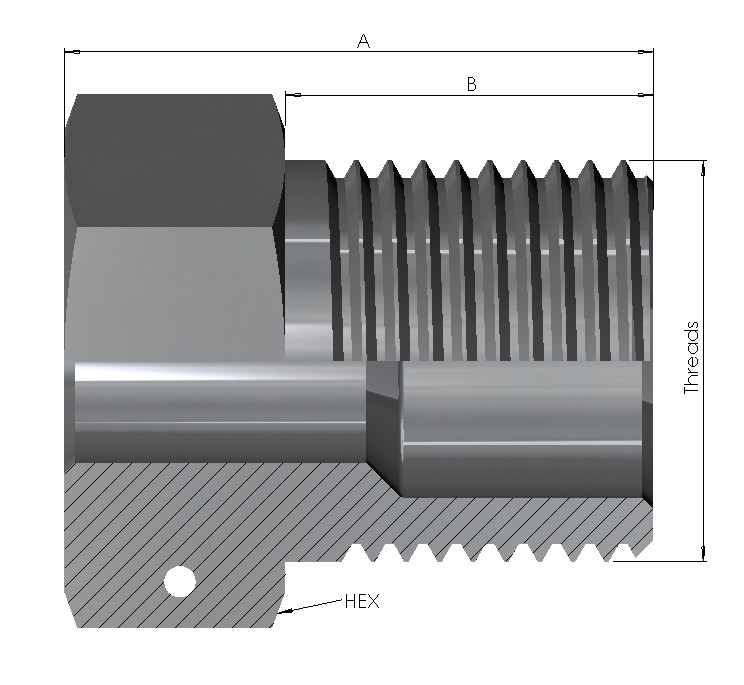

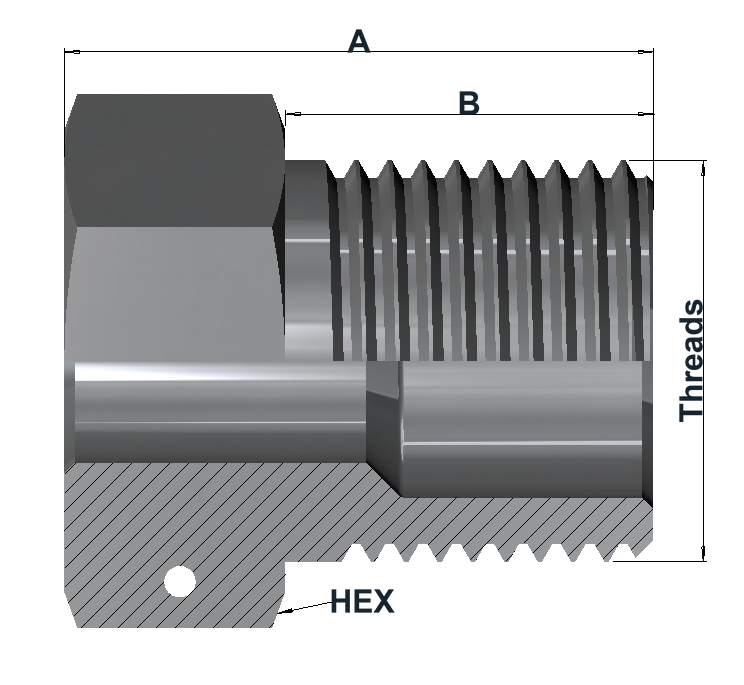

Dimensions & variants

Dimensions in mm

Item number	HP Size	HP Thread	A	B	Hex
HP04G316	1/4" (04)	9/16"-18UN	22	12	17
HP06G316	3/8" (06)	3/4"-16UN	28	17	22
HP09G316	9/16" (09)	1 1/8"-12UN	38	23	30

Article number structure

HP | 04 | G | 316

Series | HP size code | Gland | Material

Download Datasheet

Product specifications

Component — Gland	Assembly	General product information
Type High Pressure gland Details Thread: see dimensions HP size See dimensions	System High Pressure cone-and-thread Sizes See dimensions	Material: AISI 316L / EN 1.4404 / UNS S31603 Working pressure 60,000 PSI / 4,137 bar / 413.7 MPa* HS code 73079900 Country of origin Norway

Technical info

Connections

Dimensionally compatible with the established 60,000 psi High Pressure cone-and-thread connection geometry.

Working pressure basis*

The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.

IM-HP-G-60K · HTML DRAFT 01
Layout example based on the group HP-G datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
