PRODUCT GROUPHF950015K
High Pressure Female × NPT Female
ASME B1.20.1
Rated working pressure: 15,000 PSI / 1,034 bar / 103.4 MPa*

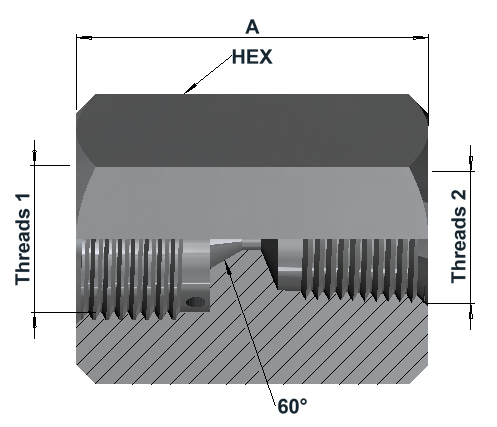

Dimensions & variants
Dimensions in mm
| Item number | HP Size | HP Thread | NPT Thread | A | Hex |
|---|---|---|---|---|---|
| HF95000404316 | 1/4" (04) | 9/16"-18UN | 1/4"NPT | 35 | 24 |
| HF95000406316 | 1/4" (04) | 9/16"-18UN | 3/8"NPT | 36 | 27 |
| HF95000408316 | 1/4" (04) | 9/16"-18UN | 1/2"NPT | 40 | 36 |
| HF95000604316 | 3/8" (06) | 3/4"-16UN | 1/4"NPT | 39 | 30 |
| HF95000606316 | 3/8" (06) | 3/4"-16UN | 3/8"NPT | 40 | 30 |
| HF95000608316 | 3/8" (06) | 3/4"-16UN | 1/2"NPT | 44 | 36 |
| HF95000904316 | 9/16" (09) | 1 1/8"-12UN | 1/4"NPT | 45 | 36 |
| HF95000906316 | 9/16" (09) | 1 1/8"-12UN | 3/8"NPT | 46 | 36 |
| HF95000908316 | 9/16" (09) | 1 1/8"-12UN | 1/2"NPT | 50 | 36 |
Article number structure
HF9500 | 09 | 08 | 316Series | HP size code | NPT size code | Material
Product specifications
| End 1 — High Pressure Female | End 2 — NPT FeMale | General product information |
|---|---|---|
|
|
|
Technical info
Connections
High Pressure side: 60° female cone seat, intended to mate with a 58° male cone.
NPT female end to ASME B1.20.1.
Dimensionally compatible with the established High Pressure cone-and-thread connection geometry.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
