High Pressure Female × Medium Pressure Male Fixed
Rated working pressure: 20,000 PSI / 1,379 bar / 137.9 MPa*

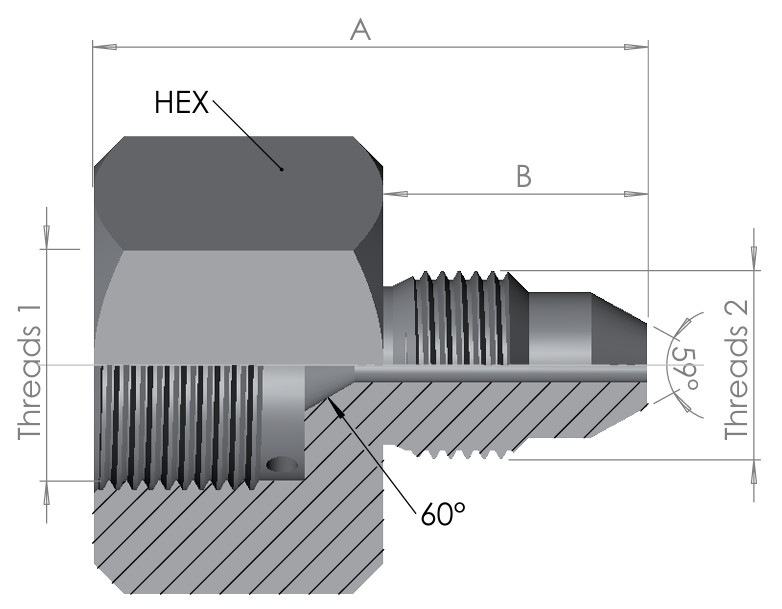

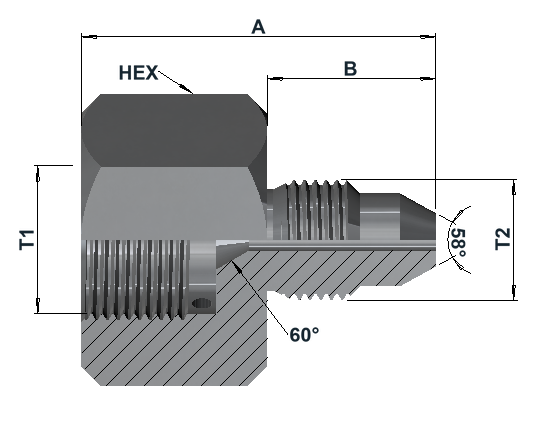

Dimensions & variants
Dimensions in mm
| Item number | HP Size | HP Thread | MP Size | MP Thread | A | B | Hex |
|---|---|---|---|---|---|---|---|
| HF04MMF04316 | 1/4" (04) | 9/16"-18UN | 1/4" (04) | 7/16"-20UN | 35 | 18 | 22 |
| HF04MMF06316 | 1/4" (04) | 9/16"-18UN | 3/8" (06) | 9/16"-18UN | 37 | 20 | 22 |
| HF04MMF09316 | 1/4" (04) | 9/16"-18UN | 9/16" (09) | 13/16"-16UN | 42 | 25 | 30 |
| HF06MMF04316 | 3/8" (06) | 3/4"-16UN | 1/4" (04) | 7/16"-20UN | 40 | 18 | 30 |
| HF06MMF06316 | 3/8" (06) | 3/4"-16UN | 3/8" (06) | 9/16"-18UN | 42 | 20 | 30 |
| HF06MMF09316 | 3/8" (06) | 3/4"-16UN | 9/16" (09) | 13/16"-16UN | 47 | 25 | 30 |
| HF09MMF04316 | 9/16" (09) | 1 1/8"-12UN | 1/4" (04) | 7/16"-20UN | 47 | 18 | 36 |
| HF09MMF06316 | 9/16" (09) | 1 1/8"-12UN | 3/8" (06) | 9/16"-18UN | 49 | 20 | 36 |
| HF09MMF09316 | 9/16" (09) | 1 1/8"-12UN | 9/16" (09) | 13/16"-16UN | 54 | 25 | 36 |
Article number structure
HF04 | MMF04 | 316HP female + size | MP male + size | Material
Product specifications
| End 1 — High Pressure Female | End 2 — Medium Pressure Male Fixed | General product information |
|---|---|---|
|
|
|
Technical info
Connections
60° High Pressure female cone geometry at port 1, intended to mate with a 58° male cone end.
58° Medium Pressure male cone geometry at port 2.
Dimensionally compatible with the established High Pressure and Medium Pressure cone-and-thread connection geometries for the stated sizes.
Working pressure of the adapter assembly is 20,000 psi / 1,379 bar / 137.9 MPa.*
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
