High Pressure Female × BSPP Male
Rated working pressure: 15,000 PSI / 1,034 bar / 103.4 MPa*

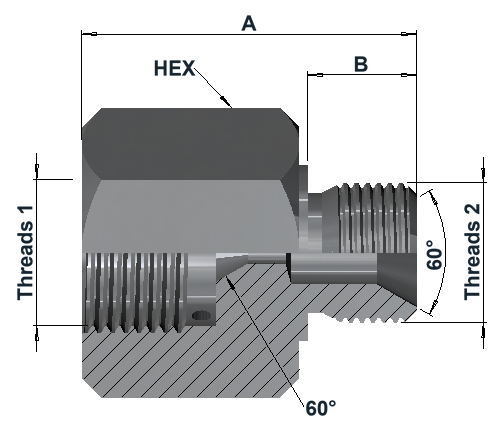

Dimensions & variants
Dimensions in mm
| Item number | HP Size | HP Thread | BSPP Thread | A | B | Hex |
|---|---|---|---|---|---|---|
| HF55000404316 | 1/4" (04) | 9/16"-18UN | G 1/4" | 30 | 11 | 22 |
| HF55000406316 | 1/4" (04) | 9/16"-18UN | G 3/8" | 32 | 13 | 22 |
| HF55000408316 | 1/4" (04) | 9/16"-18UN | G 1/2" | 30 | 15 | 27 |
| HF55000604316 | 3/8" (06) | 3/4"-16UN | G 1/4" | 38 | 11 | 30 |
| HF55000606316 | 3/8" (06) | 3/4"-16UN | G 3/8" | 40 | 13 | 30 |
| HF55000608316 | 3/8" (06) | 3/4"-16UN | G 1/2" | 40 | 15 | 30 |
| HF55000904316 | 9/16" (09) | 1 1/8"-12UN | G 1/4" | 40 | 11 | 36 |
| HF55000906316 | 9/16" (09) | 1 1/8"-12UN | G 3/8" | 42 | 13 | 36 |
| HF55000908316 | 9/16" (09) | 1 1/8"-12UN | G 1/2" | 44 | 15 | 36 |
Article number structure
HF5500 | 09 | 08 | 316Series | HP size code | BSP size code | Material
Product specifications
| End 1 — High Pressure Female | End 2 — BSPP Male | General product information |
|---|---|---|
|
|
|
Technical info
Connections
High Pressure side: 60° female cone seat, intended to mate with a 58° male cone.
BSPP side: Parallel G thread to ISO 228-1. The connection may be sealed on the 60° internal cone to ISO 8434-6, or against the external shoulder using an elastomeric bonded seal to ISO 1179-2.
Dimensionally compatible with the established High Pressure cone-and-thread connection geometry.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
