PRODUCT GROUPHF-HF60K
High Pressure Female / Female
Rated working pressure: 60,000 PSI / 4,137 bar / 413.7 MPa*
Dimensions & variants

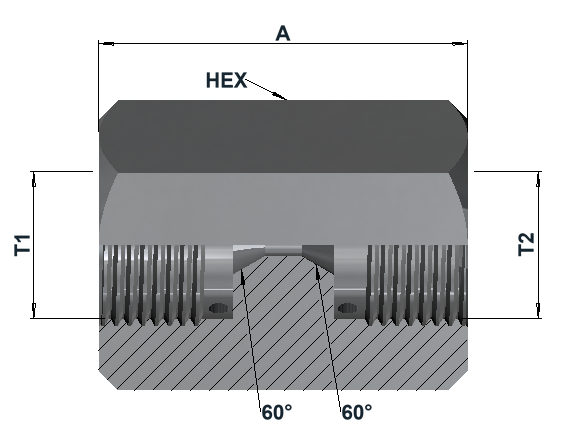

Dimensions in mm
| Item number | HP Size 1 | HP Thread 1 | HP Size 2 | HP Thread 2 | A | Hex |
|---|---|---|---|---|---|---|
| HF04HF04316 | 1/4" (04) | 9/16"-18UN | 1/4" (04) | 9/16"-18UN | 30 | 22 |
| HF04HF06316 | 1/4" (04) | 9/16"-18UN | 3/8" (06) | 3/4"-16UN | 36 | 30 |
| HF04HF09316 | 1/4" (04) | 9/16"-18UN | 9/16" (09) | 1 1/8"-12UN | 44 | 36 |
| HF06HF06316 | 3/8" (06) | 3/4"-16UN | 3/8" (06) | 3/4"-16UN | 44 | 30 |
| HF06HF09316 | 3/8" (06) | 3/4"-16UN | 9/16" (09) | 1 1/8"-12UN | 48 | 36 |
| HF09HF09316 | 9/16" (09) | 1 1/8"-12UN | 9/16" (09) | 1 1/8"-12UN | 50 | 36 |
Article number structure
HF04 | HF09 | 316Female end + size | Female end + size | Material
Product specifications
| End 1 — High Pressure Female | End 2 — High Pressure Female | General product information |
|---|---|---|
|
|
|
Technical info
Connections
60° female cone geometry on both ends, intended to mate with 58° male cone ends.
Dimensionally compatible with the established 60,000 psi High Pressure cone-and-thread connection geometry.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
