High Pressure Female Cap

Rated working pressure: 60,000 PSI / 4,137 bar / 413.7 MPa*

Dimensions & variants

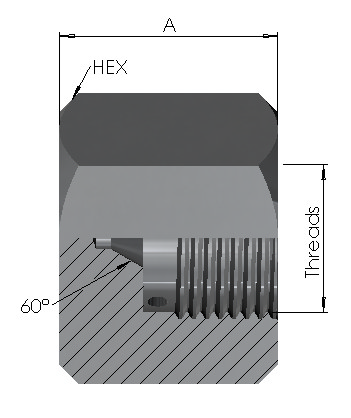

Dimensions in mm

Item number	HP Size	HP Thread	A	Hex
HF04316	1/4" (04)	9/16"-18UN	20	22
HF06316	3/8" (06)	3/4"-16UN	26	30
HF09316	9/16" (09)	1 1/8"-12UN	31	36

Article number structure

HF | 04 | 316

Series | HP size code | Material

Download Datasheet

Product specifications

Connection — High Pressure Female	Configuration	General product information
Type High Pressure Female Sealing 60° female cone seat Connection geometry High Pressure cone-and-thread HP size and thread See dimensions	Type Cap Connections One sealing connection Sizes See dimensions	Material: AISI 316L / EN 1.4404 / UNS S31603 Working pressure 60,000 PSI / 4,137 bar / 413.7 MPa* HS code 73079900 Country of origin Norway

Technical info

Connections

High Pressure Female Cap. Sizes are specified in the table.

Working pressure basis*

The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
