PRODUCT GROUP4608R8
MATERIALSS316LStainless steel

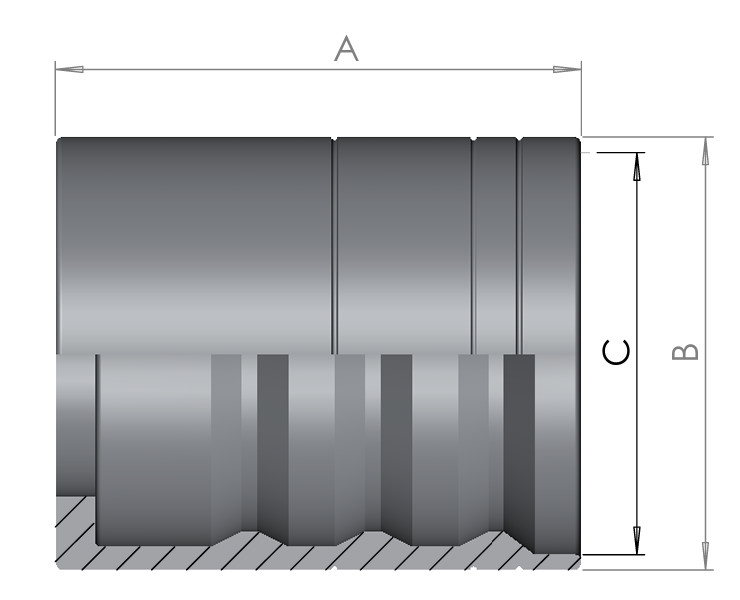

Crimp Sleeve Thermoplastic R8

SAE 100 R8

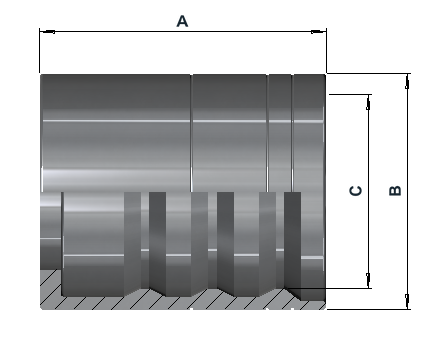

Group 4608 crimp sleeve dimensional drawing with A, B and C references

Dimensions

Dimensions in mm

Item numberHose sizeSleeve typeABCWeight (kg)
460804043161/4"Thermoplastic30Ø21.3Ø16.50.028
460806063163/8"Thermoplastic32Ø25Ø19.60.037
460808083161/2"Thermoplastic34Ø28.2Ø230.047
460812123163/4"Thermoplastic42.5Ø35Ø300.069
460816163161"Thermoplastic50Ø45Ø39.50.126
Download Datasheet

Product specifications

Hose compatibilitySleeve & assemblyGeneral product information
Hose type
Thermoplastic
Hose standard
SAE 100 R8
Hose size
1/4"–1" (see dimensions)
Type
Crimp sleeve
Application
For standard hose inserts
Compatibility
Customer must verify hose, insert and sleeve compatibility
Material:
AISI 316L / EN 1.4404 / UNS S31603
HS code
73079900
Country of origin
Norway

Technical info

Crimp sleeve

Intended for assembly of thermoplastic hoses to SAE 100 R8, subject to verified hose, insert and sleeve compatibility. Assembly working pressure depends on the validated component combination, correct insertion depth and crimping to the specified diameter and tolerances. It must not exceed the lowest component pressure rating, with any applicable temperature and service derating taken into account.

IM-4608 · HTML DRAFT 01
Layout example based on the group 4608 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
