PRODUCT GROUP4400PTFE
MATERIALSS316LStainless steel

Crimp Sleeve PTFE (Teflon)

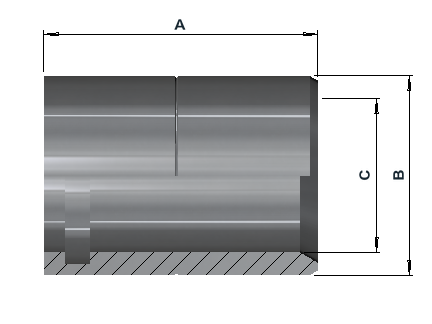

Group 4400 crimp sleeve dimensional drawing with A, B and C references

Dimensions

Dimensions in mm

Item numberHose sizeSleeve typeABCWeight (kg)
440004043161/4"PTFE (Teflon)26Ø15.5Ø11.30.017
440006063163/8"PTFE (Teflon)29Ø19Ø14.30.027
440008083161/2"PTFE (Teflon)33Ø24Ø18.50.044
440012123163/4"PTFE (Teflon)37Ø31Ø24.50.078
440016163161"PTFE (Teflon)41Ø38Ø330.089
Download Datasheet

Product specifications

Hose compatibilitySleeve & assemblyGeneral product information
Hose type
PTFE (Teflon)
Hose size
1/4"–1" (see dimensions)
Type
Crimp sleeve
Application
For standard hose inserts
Compatibility
Customer must verify hose, insert and sleeve compatibility
Material:
AISI 316L / EN 1.4404 / UNS S31603
HS code
73079900
Country of origin
Norway

Technical info

Crimp sleeve

Intended for assembly of PTFE hoses, subject to verified hose, insert and sleeve compatibility. Assembly working pressure depends on the validated component combination, correct insertion depth and crimping to the specified diameter and tolerances. It must not exceed the lowest component pressure rating, with any applicable temperature and service derating taken into account.

IM-4400 · HTML DRAFT 01
Layout example based on the group 4400 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
