Interlock Crimp Sleeve 4W (R9)

EN 856 4SP

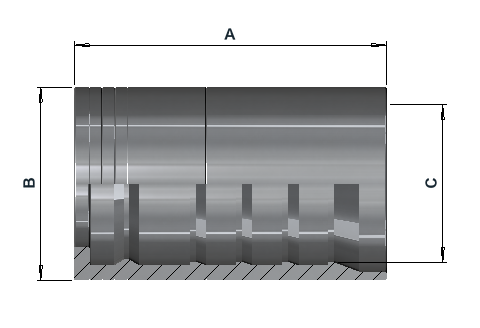

Group 5004 crimp sleeve dimensional drawing with A, B and C references

Dimensions

Dimensions in mm

Item number	Hose size	DN	Sleeve type	A	B	C	Weight (kg)
50041212316	3/4"	20	Interlock 4wire	61	Ø42	Ø33.5	0.221
50041616316	1"	25	Interlock 4wire	74.5	Ø46	Ø37	0.294
50042020316	1 1/4"	32	Interlock 4wire	88	Ø55	Ø44	0.504
50042424316	1 1/2"	40	Interlock 4wire	94	Ø62	Ø51.5	0.596
50043232316	2"	50	Interlock 4wire	99	Ø79.5	Ø66	1.041

5004 | 16 | 16 | 316

Series | Hose size code | Sleeve size code | Material

Download Datasheet

Product specifications

Hose compatibility	Sleeve & assembly	General product information
Hose type 4-wire spiral Hose standard EN 856 4SP Hose size 3/4"–2" (see dimensions)	Type Interlock crimp sleeve Assembly External and internal skiving — For Interlock hose inserts Compatibility Customer must verify hose, insert and sleeve compatibility Compatible Interlock hose insert series IL0100 / IL0145 / IL0190 — BSPP Female Swivel 60° IL0200 — BSPP Male 60° IL0600 / IL0645 / IL0690 — JIC 37° Female Swivel IL0700 — JIC 37° Male IL1100 — NPT Male IL2800 / IL2845 / IL2890 — SAE Code 62 flange Use only sizes available in both the sleeve and insert series. Select the sleeve for the actual hose construction and dimensions. Compatibility remains subject to validated internal and external skiving dimensions, assembly and crimping specifications.	Material: AISI 316L / EN 1.4404 / UNS S31603 HS code 73079900 Country of origin Norway

Technical info

Hose application

Interlock sleeve for four-spiral hydraulic hose to EN 856 type 4SP. R9 is retained as the legacy catalogue designation; select by the actual hose specification and dimensions. Intended for demanding hydraulic service with a validated Interlock assembly.

Assembly

Use with matching Interlock hose inserts. Both external and internal skiving are required to the specified lengths and depths, without damaging the wire reinforcement. Follow the validated hose preparation, insertion and crimping specifications for the actual hose, insert and sleeve combination.

Pressure rating

The hose standard describes the hose, not the pressure rating of the sleeve or complete assembly. Assembly working pressure must not exceed the lowest component rating, with applicable temperature and service derating. Dimensions B and C are sleeve dimensions before crimping, not specified crimp diameters.

IM-5004 · HTML DRAFT 01
Layout example based on the group 5004 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
