PRODUCT GROUP41022 Wire
MATERIALSS316LStainless steel

Crimp Sleeve 2 Wire Non-Skive

EN 853 2SNSAE 100 R2AT

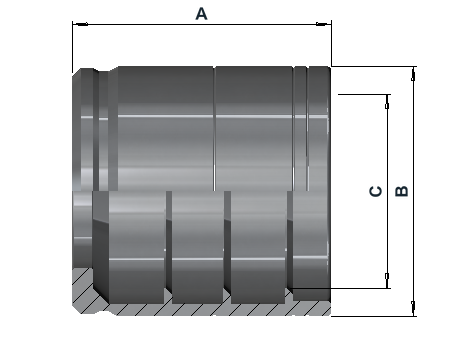

Group 4102 crimp sleeve dimensional drawing with A, B and C references

Dimensions

Dimensions in mm

Item numberHose sizeSleeve typeABCWeight (kg)
410204043161/4"2wire Non-Skive25Ø23Ø160.029
410206063163/8"2wire Non-Skive28Ø27Ø200.038
410208083161/2"2wire Non-Skive31Ø30Ø23.50.043
410210103165/8"2wire Non-Skive31Ø33.2Ø26.50.046
410212123163/4"2wire Non-Skive32Ø37Ø300.068
410216163161"2wire Non-Skive41Ø48Ø390.110
410220203161 1/4"2wire Non-Skive48Ø60Ø49.50.190
410224243161 1/2"2wire Non-Skive48Ø67Ø560.255
410232323162"2wire Non-Skive54Ø80Ø68.80.349
Download Datasheet

Product specifications

Hose compatibilitySleeve & assemblyGeneral product information
Hose type
2-wire braided
Hose standard
EN 853 2SN / SAE 100 R2AT
Hose size
1/4"–2" (see dimensions)
Type
Crimp sleeve
Assembly
Non-skive — For standard hose inserts
Compatibility
Customer must verify hose, insert and sleeve compatibility
Material:
AISI 316L / EN 1.4404 / UNS S31603
HS code
73079900
Country of origin
Norway

Technical info

Crimp sleeve

Intended for non-skive assembly of two-wire braided hydraulic hoses to EN 853 2SN / SAE 100 R2AT, subject to verified hose, insert and sleeve compatibility. Assembly working pressure depends on the validated component combination, correct insertion depth and crimping to the specified diameter and tolerances. It must not exceed the lowest component pressure rating, with any applicable temperature and service derating taken into account.

IM-4102 · HTML DRAFT 01
Layout example based on the group 4102 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
