PRODUCT GROUP43001 & 2 Wire
MATERIALSS316LStainless steel

Crimp Sleeve 1 & 2 Wire Non-Skive

EN 853 1SNSAE 100 R1AT/R2AT

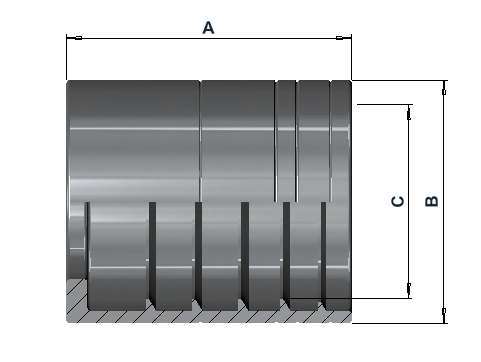

Group 4300 crimp sleeve dimensional drawing with A, B and C references

Dimensions

Dimensions in mm

Item numberHose sizeSleeve typeABCWeight (kg)
430004043161/4"1 & 2 Wire Non-Skive30.5Ø23Ø15.70.041
430006063163/8"1 & 2 Wire Non-Skive32Ø25Ø200.032
430008083161/2"1 & 2 Wire Non-Skive34Ø29Ø230.047
430012123163/4"1 & 2 Wire Non-Skive42.5Ø36Ø300.075
430016163161"1 & 2 Wire Non-Skive50Ø45Ø38.50.116
Download Datasheet

Product specifications

Hose compatibilitySleeve & assemblyGeneral product information
Hose type
1- and 2-wire braided
Hose standard
EN 853 1SN / SAE 100 R1AT/R2AT
Hose size
1/4"–1" (see dimensions)
Type
Crimp sleeve
Assembly
Non-skive — For standard hose inserts
Compatibility
Customer must verify hose, insert and sleeve compatibility
Material:
AISI 316L / EN 1.4404 / UNS S31603
HS code
73079900
Country of origin
Norway

Technical info

Crimp sleeve

Intended for non-skive assembly of single- and two-wire braided hydraulic hoses to EN 853 1SN / SAE 100 R1AT/R2AT/R2AT, subject to verified hose, insert and sleeve compatibility. Assembly working pressure depends on the validated component combination, correct insertion depth and crimping to the specified diameter and tolerances. It must not exceed the lowest component pressure rating, with any applicable temperature and service derating taken into account.

IM-4300 · HTML DRAFT 01
Layout example based on the group 4300 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
