PRODUCT GROUP780010K
BSPP Male 60° Cone × NPT Male
ISO 8434-6ISO 1179-2ASME B1.20.1
Rated working pressure: 10,000 PSI / 689 bar / 68.9 MPa*

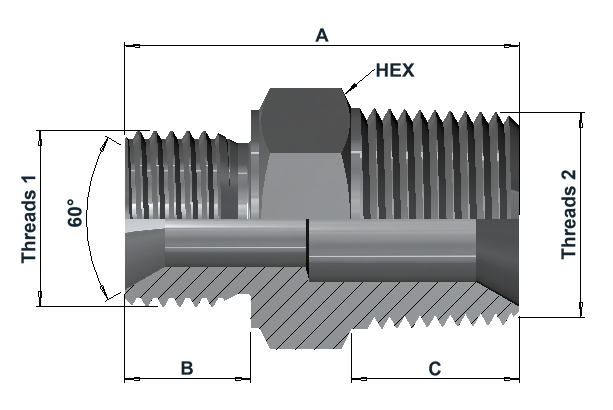

Dimensions & variants
Dimensions in mm
| Item number | BSPP Male | NPT Male | A | B | C | Hex | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 7800040431610K | G 1/4" | 1/4"NPT | 34 | 11 | 14 | 19 | 0.036 |
| 7800040631610K | G 1/4" | 3/8"NPT | 35 | 11 | 15 | 19 | 0.043 |
| 7800040831610K | G 1/4" | 1/2"NPT | 40 | 11 | 19 | 22 | 0.066 |
| 7800060431610K | G 3/8" | 1/4"NPT | 37 | 12.5 | 14 | 22 | 0.050 |
| 7800060631610K | G 3/8" | 3/8"NPT | 38 | 12.5 | 15 | 22 | 0.056 |
| 7800060831610K | G 3/8" | 1/2"NPT | 42 | 12.5 | 19 | 22 | 0.072 |
| 7800080431610K | G 1/2" | 1/4"NPT | 41 | 15 | 14 | 27 | 0.079 |
| 7800080631610K | G 1/2" | 3/8"NPT | 42 | 15 | 15 | 27 | 0.089 |
| 7800080831610K | G 1/2" | 1/2"NPT | 46 | 15 | 19 | 27 | 0.100 |
| 7800081231610K | G 1/2" | 3/4"NPT | 47 | 15 | 20 | 27 | 0.118 |
| 7800081631610K | G 1/2" | 1"NPT | 54 | 15 | 24 | 36 | 0.231 |
| 7800120831610K | G 3/4" | 1/2"NPT | 49 | 17 | 19 | 32 | 0.145 |
| 7800121231610K | G 3/4" | 3/4"NPT | 50 | 17 | 20 | 32 | 0.161 |
| 7800121631610K | G 3/4" | 1"NPT | 55 | 17 | 24 | 36 | 0.245 |
| 7800160831610K | G 1" | 1/2"NPT | 53 | 19 | 19 | 41 | 0.228 |
| 7800161231610K | G 1" | 3/4"NPT | 54 | 19 | 20 | 41 | 0.272 |
| 7800161631610K | G 1" | 1"NPT | 58 | 19 | 24 | 41 | 0.295 |
| 7800162031610K | G 1" | 1 1/4"NPT | 60 | 19 | 24.5 | 46 | 0.390 |
| 7800162431610K | G 1" | 1 1/2"NPT | 60 | 19 | 25.5 | 50 | 0.500 |
| 7800201631610K | G 1 1/4" | 1"NPT | 62 | 21 | 24 | 50 | 0.490 |
| 7800202031610K | G 1 1/4" | 1 1/4"NPT | 62 | 21 | 24.5 | 50 | 0.450 |
| 7800241631610K | G 1 1/2" | 1"NPT | 63 | 22 | 24 | 55 | 0.510 |
| 7800242031610K | G 1 1/2" | 1 1/4"NPT | 64 | 22 | 24.5 | 55 | 0.570 |
| 7800242431610K | G 1 1/2" | 1 1/2"NPT | 64 | 22 | 25.5 | 55 | 0.590 |
| 7800243231610K | G 1 1/2" | 2"NPT | 74 | 22 | 33 | 65 | 0.935 |
Article number structure
7800 | 04 | 04 | 316 | 10KSeries | BSPP thread code | NPT thread code | Material | Pressure class
Product specifications
| End 1 — BSPP Male | End 2 — NPT Male | General product information |
|---|---|---|
|
|
|
Technical info
Connections
BSPP side: Parallel G thread to ISO 228-1. The connection may be sealed either on the 60° internal cone to ISO 8434-6, or against the external shoulder using an elastomeric bonded seal to ISO 1179-2.
NPT side: Tapered pipe thread to ASME B1.20.1.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
