BSPP Male 60° Cone × NPT Female

ISO 8434-6ISO 1179-2ASME B1.20.1

Rated working pressure: 10,000 PSI / 689 bar / 68.9 MPa*

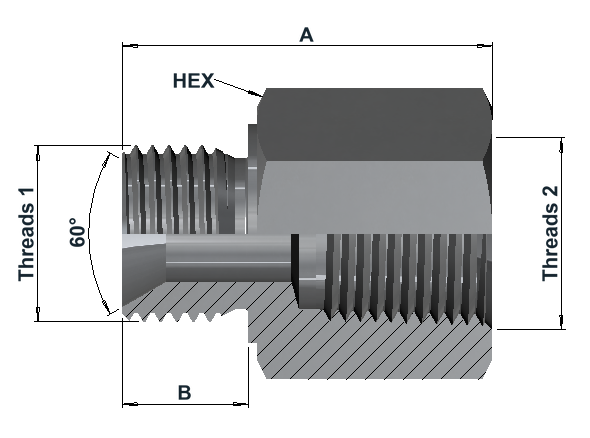

7900 10K BSPP Male 60° Cone × NPT Female dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	BSPP Male	NPT Female	A	B	Hex	Weight (kg)
7900040431610K	G 1/4"	1/4"NPT	32	11	22	0.057
7900040631610K	G 1/4"	3/8"NPT	35	11	24	0.094
7900040831610K	G 1/4"	1/2"NPT	40	11	32	0.146
7900060431610K	G 3/8"	1/4"NPT	35	12.5	22	0.068
7900060631610K	G 3/8"	3/8"NPT	35	12.5	24	0.820
7900060831610K	G 3/8"	1/2"NPT	42	12.5	32	0.155
7900080431610K	G 1/2"	1/4"NPT	28	15	27	0.064
7900080631610K	G 1/2"	3/8"NPT	38	15	27	0.140
7900080831610K	G 1/2"	1/2"NPT	44	15	32	0.163
7900081231610K	G 1/2"	3/4"NPT	46	15	41	0.310
7900081631610K	G 1/2"	1"NPT	52	15	50	0.490
7900120431610K	G 3/4"	1/4"NPT	30	17	32	0.122
7900120631610K	G 3/4"	3/8"NPT	30	17	32	0.114
7900120831610K	G 3/4"	1/2"NPT	45	17	32	0.181
7900121231610K	G 3/4"	3/4"NPT	47	17	41	0.300
7900121631610K	G 3/4"	1"NPT	52	17	50	0.500
7900160431610K	G 1"	1/4"NPT	35	19	41	0.240
7900160631610K	G 1"	3/8"NPT	35	19	41	0.220
7900160831610K	G 1"	1/2"NPT	35	19	41	0.206
7900161231610K	G 1"	3/4"NPT	50	19	41	0.330
7900161631610K	G 1"	1"NPT	55	19	50	0.494

Article number structure

7900 | 04 | 04 | 316 | 10K

Series | BSPP male thread code | NPT female thread code | Material | Pressure class

Download Datasheet

Product specifications

End 1 — BSPP Male	End 2 — NPT Female	General product information
Type BSPP Male Sealing 60° internal cone or bonded seal Connection standards ISO 8434-6 / ISO 1179-2 Thread standard ISO 228-1	Type NPT Female Sealing Tapered pipe thread Thread standard ASME B1.20.1	Material: AISI 316L / EN 1.4404 / UNS S31603 Working pressure 10,000 PSI / 689 bar / 68.9 MPa* HS code 73079900 Country of origin Norway

Technical info

Connections

BSPP male side: Parallel G thread to ISO 228-1. The connection may be sealed either on the 60° internal cone to ISO 8434-6, or against the external shoulder using an elastomeric bonded seal to ISO 1179-2.

NPT female side: Tapered pipe thread to ASME B1.20.1.

Working pressure basis*

The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.

IM-7900-10K · HTML DRAFT 01
Layout example based on the group 7900 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
