BSPP Male 60° Cone, Elbow 90°

ISO 8434-6ISO 1179-2

Rated working pressure: 6,000 PSI / 414 bar / 41.4 MPa*

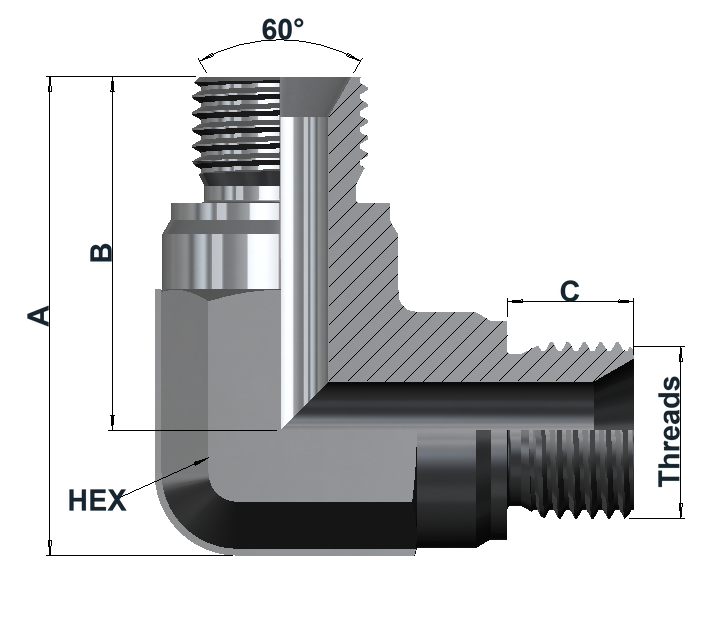

5590 6K BSPP Male 60° Cone, Elbow 90° dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	BSPP	A	B	C	Hex
55900404316	G 1/4"	44	22	11	20
55900606316	G 3/8"	52	26	12.5	23
55900808316	G 1/2"	58	29	15	28
55901212316	G 3/4"	76	38	16	34
55901616316	G 1"	88	44	19	44

Article number structure

5590 | 04 | 04 | 316 | 6K

Series | BSPP thread code | BSPP thread code | Material | Pressure class

Download Datasheet

Product specifications

End 1 — BSPP Male	End 2 — BSPP Male	General product information
Type BSPP Male Sealing 60° internal cone or bonded seal Connection standards ISO 8434-6 / ISO 1179-2 Thread standard ISO 228-1	Type BSPP Male Sealing 60° internal cone or bonded seal Connection standards ISO 8434-6 / ISO 1179-2 Thread standard ISO 228-1	Material: AISI 316L / EN 1.4404 / UNS S31603 Working pressure 6,000 PSI / 414 bar / 41.4 MPa* HS code 73079900 Country of origin Norway

Technical info

Connections

BSPP ends: Parallel G threads to ISO 228-1. Each connection may be sealed either on the 60° internal cone to ISO 8434-6, or against the external shoulder using an elastomeric bonded seal to ISO 1179-2.

Working pressure basis*

The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.

IM-5590-6K · HTML DRAFT 01
Layout example based on the group 5590 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
