PRODUCT GROUP55006K
BSPP Male 60° Cone × BSPP Male 60° Cone
ISO 8434-6ISO 1179-2
Rated working pressure: 6,000 PSI / 414 bar / 41.4 MPa*

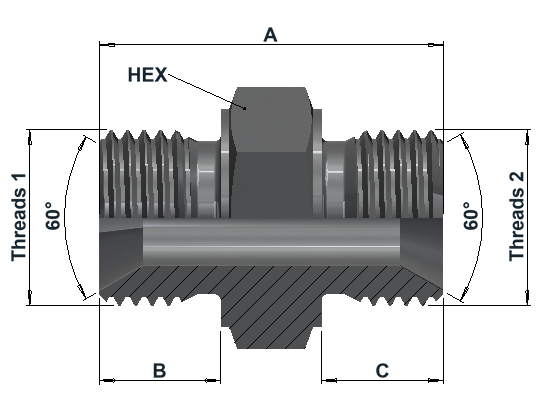

Dimensions & variants
Dimensions in mm
| Item number | BSPP 1 | BSPP 2 | A | B | C | Hex | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 55000202316 | G 1/8" | G 1/8" | 27.5 | 8.5 | 8.5 | 14 | 0.018 |
| 55000204316 | G 1/8" | G 1/4" | 30 | 8.5 | 11.5 | 19 | 0.032 |
| 55000206316 | G 1/8" | G 3/8" | 32 | 8.5 | 12.5 | 22 | 0.049 |
| 55000208316 | G 1/8" | G 1/2" | 35 | 8.5 | 15 | 27 | 0.070 |
| 55000404316 | G 1/4" | G 1/4" | 33 | 11 | 11 | 19 | 0.035 |
| 55000406316 | G 1/4" | G 3/8" | 35 | 11 | 12.5 | 22 | 0.049 |
| 55000408316 | G 1/4" | G 1/2" | 37 | 11 | 15 | 27 | 0.073 |
| 55000606316 | G 3/8" | G 3/8" | 36 | 12.5 | 12.5 | 22 | 0.054 |
| 55000608316 | G 3/8" | G 1/2" | 39 | 12.5 | 15 | 27 | 0.080 |
| 55000610316 | G 3/8" | G 5/8" | 41 | 12.5 | 16 | 30 | 0.106 |
| 55000612316 | G 3/8" | G 3/4" | 42 | 12.5 | 16 | 32 | 0.129 |
| 55000808316 | G 1/2" | G 1/2" | 41 | 15 | 15 | 27 | 0.087 |
| 55000810316 | G 1/2" | G 5/8" | 44 | 15 | 16 | 30 | 0.114 |
| 55000812316 | G 1/2" | G 3/4" | 45 | 15 | 16 | 32 | 0.139 |
| 55000816316 | G 1/2" | G 1" | 50 | 15 | 19 | 41 | 0.235 |
| 55001010316 | G 5/8" | G 5/8" | 45 | 16 | 16 | 30 | 0.137 |
| 55001012316 | G 5/8" | G 3/4" | 46 | 16 | 16 | 32 | 0.145 |
| 55001212316 | G 3/4" | G 3/4" | 46 | 16 | 16 | 32 | 0.155 |
| 55001216316 | G 3/4" | G 1" | 51 | 16 | 19 | 41 | 0.256 |
| 55001220316 | G 3/4" | G 1 1/4" | 54 | 16 | 21 | 50 | 0.369 |
| 55001616316 | G 1" | G 1" | 54 | 19 | 19 | 41 | 0.269 |
| 55001620316 | G 1" | G 1 1/4" | 57 | 19 | 21 | 50 | 0.388 |
| 55001624316 | G 1" | G 1 1/2" | 59 | 19 | 22 | 55 | 0.479 |
| 55002020316 | G 1 1/4" | G 1 1/4" | 59 | 21 | 21 | 50 | 0.413 |
| 55002024316 | G 1 1/4" | G 1 1/2" | 61 | 21 | 22 | 55 | 0.530 |
| 55002424316 | G 1 1/2" | G 1 1/2" | 62 | 22 | 22 | 55 | 0.530 |
| 55002432316 | G 1 1/2" | G 2" | 66 | 22 | 25 | 70 | 0.850 |
| 55003232316 | G 2" | G 2" | 69 | 25 | 25 | 70 | 0.920 |
Article number structure
5500 | 04 | 04 | 316 | 6KSeries | BSPP size 1 | BSPP size 2 | Material | Pressure class
Product specifications
| End 1 — BSPP Male | End 2 — BSPP Male | General product information |
|---|---|---|
|
|
|
Technical info
BSPP connections
Parallel G threads to ISO 228-1. Each connection may be sealed either on the 60° internal cone to ISO 8434-6, or against the external shoulder using an elastomeric bonded seal to ISO 1179-2.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
