PRODUCT GROUP550015K
BSPP Male 60° Cone × BSPP Male 60° Cone
ISO 8434-6ISO 1179-2
Rated working pressure: 15,000 PSI / 1,034 bar / 103.4 MPa*

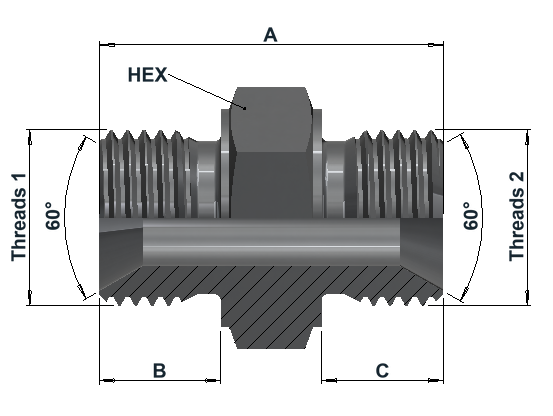

Dimensions & variants
Dimensions in mm
| Item number | BSPP 1 | BSPP 2 | A | B | C | Hex | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 5500040431615K | G 1/4" | G 1/4" | 33 | 11 | 11 | 19 | 0.037 |
| 5500040631615K | G 1/4" | G 3/8" | 35 | 11 | 12.5 | 22 | 0.051 |
| 5500040831615K | G 1/4" | G 1/2" | 37 | 11 | 15 | 27 | 0.076 |
| 5500060631615K | G 3/8" | G 3/8" | 36 | 12.5 | 12.5 | 22 | 0.056 |
| 5500060831615K | G 3/8" | G 1/2" | 39 | 12.5 | 15 | 27 | 0.084 |
| 5500080831615K | G 1/2" | G 1/2" | 41 | 15 | 15 | 27 | 0.091 |
| 5500081231615K | G 1/2" | G 3/4" | 45 | 15 | 17 | 32 | 0.139 |
| 5500081631615K | G 1/2" | G 1" | 50 | 15 | 19 | 41 | 0.260 |
| 5500121231615K | G 3/4" | G 3/4" | 46 | 17 | 17 | 32 | 0.160 |
| 5500121631615K | G 3/4" | G 1" | 51 | 17 | 19 | 41 | 0.264 |
| 5500161631615K | G 1" | G 1" | 54 | 19 | 19 | 41 | 0.291 |
Article number structure
5500 | 04 | 04 | 316 | 15KSeries | BSPP size 1 | BSPP size 2 | Material | Pressure class
Product specifications
| End 1 — BSPP Male | End 2 — BSPP Male | General product information |
|---|---|---|
|
|
|
Technical info
Connections
BSPP sides: Parallel G threads to ISO 228-1. Each connection may be sealed either on the 60° internal cone to ISO 8434-6, or against the external shoulder using an elastomeric bonded seal to ISO 1179-2.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
