PRODUCT GROUP550010K
BSPP Male 60° Cone × BSPP Male 60° Cone
ISO 8434-6ISO 1179-2
Rated working pressure: 10,000 PSI / 689 bar / 68.9 MPa*

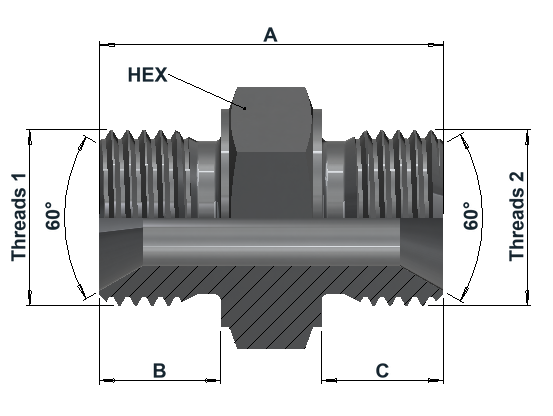

Dimensions & variants
Dimensions in mm
| Item number | BSPP 1 | BSPP 2 | A | B | C | Hex | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 5500020231610K | G 1/8" | G 1/8" | 27.5 | 8.5 | 8.5 | 14 | 0.018 |
| 5500020431610K | G 1/8" | G 1/4" | 30 | 8.5 | 11.5 | 19 | 0.032 |
| 5500020631610K | G 1/8" | G 3/8" | 32 | 8.5 | 12.5 | 22 | 0.049 |
| 5500020831610K | G 1/8" | G 1/2" | 35 | 8.5 | 15 | 27 | 0.070 |
| 5500040431610K | G 1/4" | G 1/4" | 33 | 11 | 11 | 19 | 0.035 |
| 5500040631610K | G 1/4" | G 3/8" | 35 | 11 | 12.5 | 22 | 0.049 |
| 5500040831610K | G 1/4" | G 1/2" | 37 | 11 | 15 | 27 | 0.073 |
| 5500060631610K | G 3/8" | G 3/8" | 36 | 12.5 | 12.5 | 22 | 0.054 |
| 5500060831610K | G 3/8" | G 1/2" | 39 | 12.5 | 15 | 27 | 0.080 |
| 5500061031610K | G 3/8" | G 5/8" | 41 | 12.5 | 16 | 30 | 0.106 |
| 5500061231610K | G 3/8" | G 3/4" | 42 | 12.5 | 16 | 32 | 0.129 |
| 5500080831610K | G 1/2" | G 1/2" | 41 | 15 | 15 | 27 | 0.087 |
| 5500081031610K | G 1/2" | G 5/8" | 44 | 15 | 16 | 30 | 0.114 |
| 5500081231610K | G 1/2" | G 3/4" | 45 | 15 | 16 | 32 | 0.139 |
| 5500081631610K | G 1/2" | G 1" | 50 | 15 | 19 | 41 | 0.235 |
| 5500101031610K | G 5/8" | G 5/8" | 45 | 16 | 16 | 30 | 0.137 |
| 5500101231610K | G 5/8" | G 3/4" | 46 | 16 | 16 | 32 | 0.145 |
| 5500121231610K | G 3/4" | G 3/4" | 46 | 16 | 16 | 32 | 0.155 |
| 5500121631610K | G 3/4" | G 1" | 51 | 16 | 19 | 41 | 0.256 |
| 5500122031610K | G 3/4" | G 1 1/4" | 54 | 16 | 21 | 50 | 0.382 |
| 5500161631610K | G 1" | G 1" | 54 | 19 | 19 | 41 | 0.280 |
| 5500162031610K | G 1" | G 1 1/4" | 57 | 19 | 21 | 50 | 0.400 |
| 5500162431610K | G 1" | G 1 1/2" | 59 | 19 | 22 | 55 | 0.500 |
| 5500202031610K | G 1 1/4" | G 1 1/4" | 59 | 21 | 21 | 50 | 0.425 |
| 5500202431610K | G 1 1/4" | G 1 1/2" | 61 | 21 | 22 | 55 | 0.580 |
| 5500242431610K | G 1 1/2" | G 1 1/2" | 62 | 22 | 22 | 55 | 0.580 |
| 5500243231610K | G 1 1/2" | G 2" | 66 | 22 | 25 | 70 | 0.935 |
| 5500323231610K | G 2" | G 2" | 69 | 25 | 25 | 70 | 0.985 |
Article number structure
5500 | 04 | 04 | 316 | 10KSeries | BSPP size 1 | BSPP size 2 | Material | Pressure class
Product specifications
| End 1 — BSPP Male | End 2 — BSPP Male | General product information |
|---|---|---|
|
|
|
Technical info
Connections
BSPP sides: Parallel G threads to ISO 228-1. Each connection may be sealed either on the 60° internal cone to ISO 8434-6, or against the external shoulder using an elastomeric bonded seal to ISO 1179-2.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
