BSPP Male 60° Cone × JIC 37° Male
Rated working pressure: 10,000 PSI / 689 bar / 68.9 MPa*

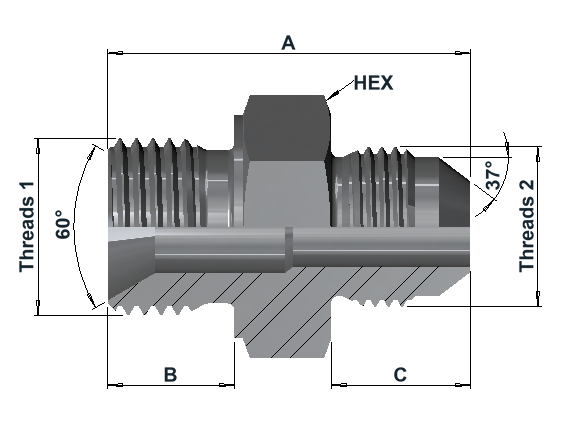

Dimensions & variants
Dimensions in mm
| Item number | BSPP Male | JIC Male | Dash | A | B | C | Hex | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 7100040731610K | G 1/4" | 7/16"-20UN | -04 | 35 | 11 | 14.5 | 19 | 0.035 |
| 7100040831610K | G 1/4" | 1/2"-20UN | -05 | 35 | 11 | 14.5 | 19 | 0.036 |
| 7100040931610K | G 1/4" | 9/16"-18UN | -06 | 35 | 11 | 14.5 | 19 | 0.038 |
| 7100060931610K | G 3/8" | 9/16"-18UN | -06 | 38 | 12.5 | 14.5 | 22 | 0.053 |
| 7100061231610K | G 3/8" | 3/4"-16UN | -08 | 40 | 12.5 | 16.5 | 22 | 0.059 |
| 7100080931610K | G 1/2" | 9/16"-18UN | -06 | 41 | 15 | 14.5 | 27 | 0.081 |
| 7100081231610K | G 1/2" | 3/4"-16UN | -08 | 43 | 15 | 16.5 | 27 | 0.089 |
| 7100081431610K | G 1/2" | 7/8"-14UN | -10 | 46 | 15 | 20 | 27 | 0.097 |
Article number structure
7100 | 04 | 07 | 316 | 10KSeries | BSPP male thread code | JIC male thread code | Material | Pressure class
Product specifications
| End 1 — BSPP Male | End 2 — JIC Male | General product information |
|---|---|---|
|
|
|
Technical info
Connections
BSPP male side: Parallel G thread to ISO 228-1. The connection may be sealed either on the 60° internal cone to ISO 8434-6, or against the external shoulder using an elastomeric bonded seal to ISO 1179-2.
JIC male side: 37° flare connection to ISO 8434-2 with UN/UNF thread to ASME B1.1.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
