BSPP Male 60° Cone × JIC 37° Female Swivel
Rated working pressure: 6,000 PSI / 414 bar / 41.4 MPa*

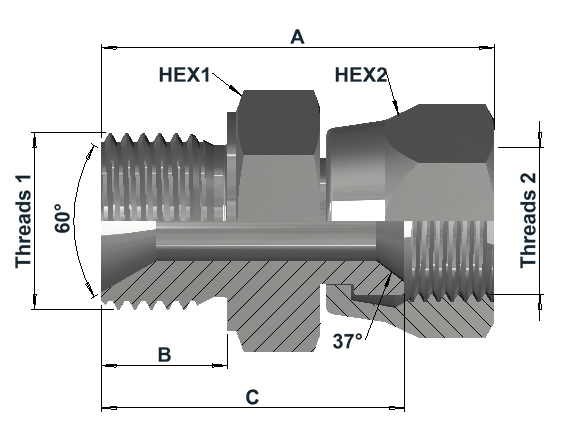

Dimensions & variants
Dimensions in mm
| Item number | BSPP Male | JIC Female | Dash | A | B | C | Hex1 | Hex2 | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 72000407316 | G 1/4" | 7/16"-20UN | -04 | 37 | 11 | 29 | 19 | 17 | 0.046 |
| 72000409316 | G 1/4" | 9/16"-18UN | -06 | 39 | 11 | 30 | 19 | 19 | 0.050 |
| 72000609316 | G 3/8" | 9/16"-18UN | -06 | 41 | 12.5 | 32 | 22 | 19 | 0.066 |
| 72000612316 | G 3/8" | 3/4"-16UN | -08 | 43 | 12.5 | 33 | 22 | 24 | 0.077 |
| 72000809316 | G 1/2" | 9/16"-18UN | -06 | 44 | 15 | 35 | 27 | 19 | 0.090 |
| 72000812316 | G 1/2" | 3/4"-16UN | -08 | 46 | 15 | 36 | 27 | 24 | 0.110 |
| 72001217316 | G 3/4" | 1 1/16"-12UN | -12 | 58 | 17 | 44 | 32 | 32 | 0.197 |
| 72001621316 | G 1" | 1 5/16"-12UN | -16 | 63 | 19 | 48 | 41 | 41 | 0.338 |
Article number structure
7200 | 08 | 12 | 316 | 6KSeries | BSPP male thread code | JIC female thread code | Material | Pressure class
Product specifications
| End 1 — BSPP Male | End 2 — JIC 37\u00b0 Female Swivel | General product information |
|---|---|---|
|
|
|
Technical info
Connections
BSPP male side: Parallel G thread to ISO 228-1. The connection may be sealed either on the 60° internal cone to ISO 8434-6, or against the external shoulder using an elastomeric bonded seal to ISO 1179-2.
JIC female swivel side: 37° flare connection to ISO 8434-2 with UN/UNF thread to ASME B1.1.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
