Series 9800

BSP Male Hex Plug <15K

Standard

ISO1179 / BS5200

Default material

Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)

Also available in

Duplex SuperDuplex (750) SuperDuplex (760) SMO254®(6MO) S165M Hastelloy®C-276 Inconel®625 Inconel®718 Incoloy®925 17-4PH Nitronic®50 Nitronic®60 Titan Grad2 Titan Grad5

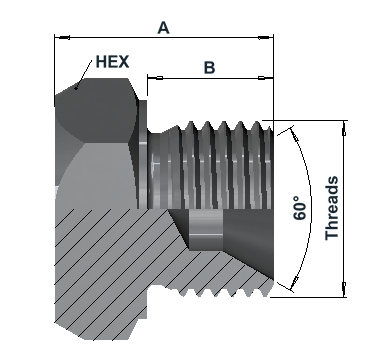

Product Code	Thread Dim 1	A	B	Hex 1	Material Code	Work Pressure
98000202316	G 1/8"	16	8.5	14	SS316	10000PSI
98000404316	G 1/4"	20	11	19	SS316	15000PSI
98000606316	G 3/8"	23	12.5	22	SS316	15000PSI
98000808316	G 1/2"	26	15	27	SS316	15000PSI
98001010316	G 5/8"	29	16	30	SS316	15000PSI
98001212316	G 3/4"	30	17	32	SS316	15000PSI
98001616316	G 1"	35	19	41	SS316	15000PSI
98002020316	G 1 1/4"	39	21	50	SS316	10000PSI
98002424316	G 1 1/2"	40	22	55	SS316	10000PSI
98003232316	G 2"	46	25	70	SS316	10000PSI

BSP Male Hex Plug <15K
