BSPP Male 60° Cone × BSPP Female Swivel, Elbow 90°
Rated working pressure: 10,000 PSI / 689 bar / 68.9 MPa*

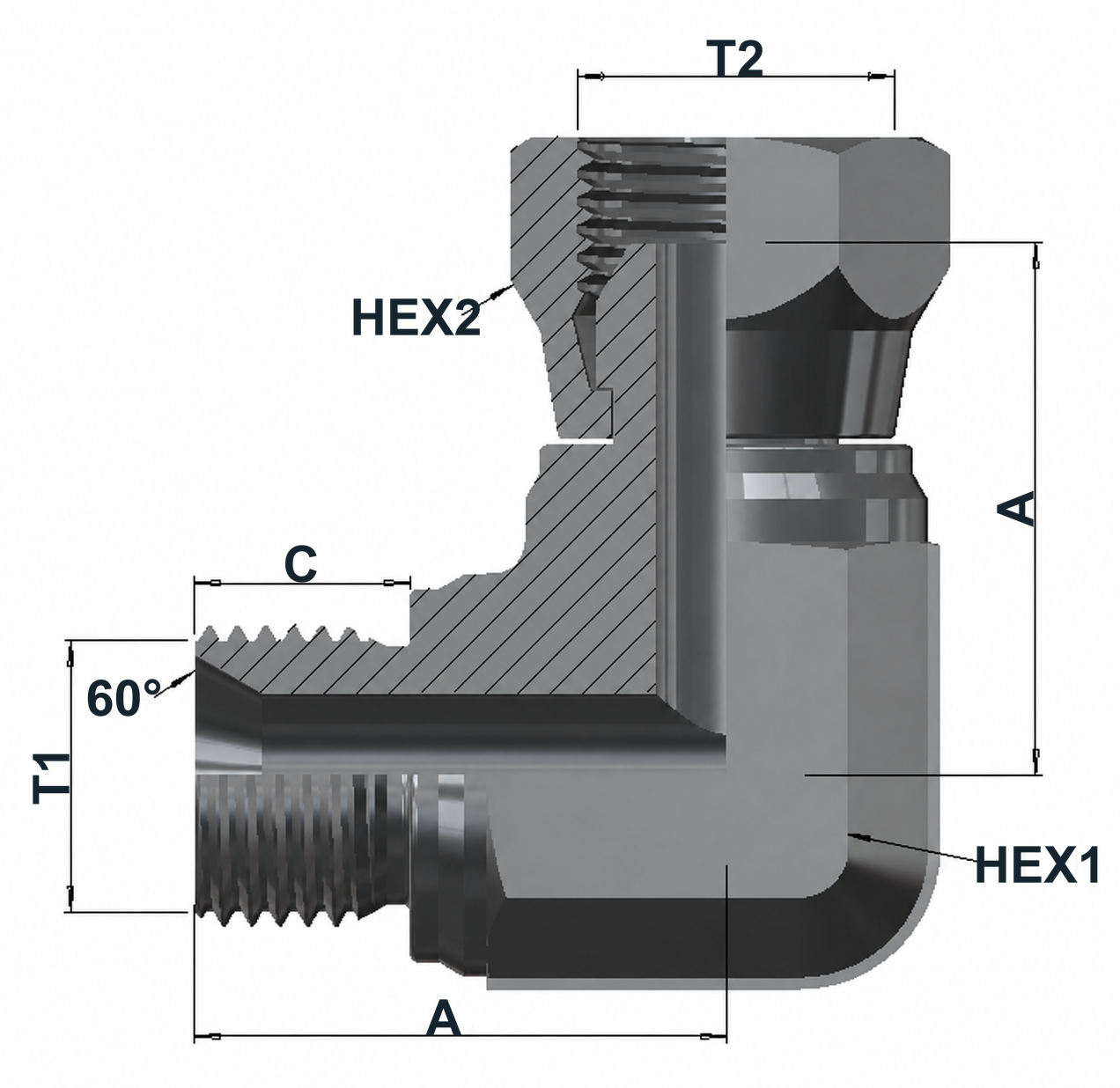

Dimensions & variants
Dimensions in mm
| Item number | BSPP Male | BSPP Female | A | C | Hex1 | Hex2 | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 6290040431610K | G 1/4" | G 1/4" | 26.5 | 11 | 20 | 19 | 0.108 |
| 6290060631610K | G 3/8" | G 3/8" | 30 | 12.5 | 23 | 22 | 0.157 |
| 6290080831610K | G 1/2" | G 1/2" | 37 | 15 | 28 | 30 | 0.308 |
| 6290121231610K | G 3/4" | G 3/4" | 43 | 17 | 34 | 36 | 0.510 |
| 6290161631610K | G 1" | G 1" | 53 | 19 | 44 | 46 | 0.970 |
Article number structure
6290 | 04 | 04 | 316 | 10KSeries | BSPP male thread code | BSPP female thread code | Material | Pressure class
Product specifications
| End 1 — BSPP Male | End 2 — BSPP Female Swivel | General product information |
|---|---|---|
|
|
|
Technical info
Connections
BSPP male side: Parallel G thread to ISO 228-1. The connection may be sealed either on the 60° internal cone to ISO 8434-6, or against the external shoulder using an elastomeric bonded seal to ISO 1179-2.
BSPP female side: Swivel female connection with 60° cone to ISO 8434-6 and parallel G thread to ISO 228-1.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
