BSPP Male 60° Cone × BSPP Female Swivel 60° Cone
Rated working pressure: 6,000 PSI / 414 bar / 41.4 MPa*

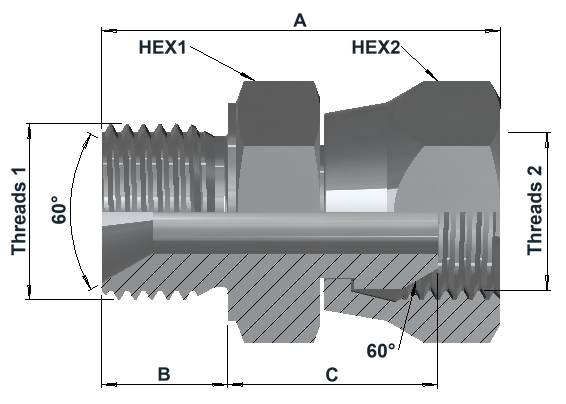

Dimensions & variants
Dimensions in mm
| Item number | BSPP Male | BSPP Female | A | B | C | Hex1 | Hex2 | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 62000404316 | G 1/4" | G 1/4" | 36.5 | 11 | 19 | 19 | 19 | 0.043 |
| 62000406316 | G 1/4" | G 3/8" | 40 | 11 | 22.5 | 19 | 22 | 0.064 |
| 62000604316 | G 3/8" | G 1/4" | 39 | 12.5 | 19.5 | 22 | 19 | 0.057 |
| 62000606316 | G 3/8" | G 3/8" | 42.5 | 12.5 | 23 | 22 | 22 | 0.077 |
| 62000608316 | G 3/8" | G 1/2" | 44 | 12.5 | 23 | 22 | 27 | 0.097 |
| 62000806316 | G 1/2" | G 3/8" | 45.5 | 15 | 24 | 27 | 22 | 0.106 |
| 62000808316 | G 1/2" | G 1/2" | 47 | 15 | 25 | 27 | 27 | 0.125 |
| 62000810316 | G 1/2" | G 5/8" | 47.5 | 15 | 24 | 27 | 30 | 0.140 |
| 62000812316 | G 1/2" | G 3/4" | 50 | 15 | 25 | 27 | 32 | 0.151 |
| 62001008316 | G 5/8" | G 1/2" | 49 | 16 | 26 | 30 | 27 | 0.155 |
| 62001010316 | G 5/8" | G 5/8" | 49.5 | 16 | 25 | 30 | 30 | 0.170 |
| 62001012316 | G 5/8" | G 3/4" | 52 | 16 | 26 | 30 | 32 | 0.190 |
| 62001208316 | G 3/4" | G 1/2" | 51 | 16 | 27 | 32 | 27 | 0.175 |
| 62001210316 | G 3/4" | G 5/8" | 51.5 | 16 | 26 | 32 | 30 | 0.190 |
| 62001212316 | G 3/4" | G 3/4" | 54 | 16 | 27 | 32 | 32 | 0.215 |
| 62001216316 | G 3/4" | G 1" | 54 | 16 | 27 | 32 | 41 | 0.290 |
| 62001612316 | G 1" | G 3/4" | 58 | 19 | 29 | 41 | 32 | 0.283 |
| 62001616316 | G 1" | G 1" | 58 | 19 | 29 | 41 | 41 | 0.319 |
| 62002020316 | G 1 1/4" | G 1 1/4" | 67 | 22 | 31.5 | 50 | 50 | 0.540 |
| 62002424316 | G 1 1/2" | G 1 1/2" | 71 | 22 | 36.5 | 55 | 55 | 0.820 |
| 62003232316 | G 2" | G 2" | 82 | 26 | 40 | 70 | 70 |
Article number structure
6200 | 08 | 12 | 316 | 6KSeries | BSPP male thread code | BSPP female thread code | Material | Pressure class
Product specifications
| End 1 — BSPP Male | End 2 — BSPP Female Swivel | General product information |
|---|---|---|
|
|
|
Technical info
Connections
BSPP male side: Parallel G thread to ISO 228-1. The connection may be sealed either on the 60° internal cone to ISO 8434-6, or against the external shoulder using an elastomeric bonded seal to ISO 1179-2.
BSPP female side: Swivel female connection with 60° cone to ISO 8434-6 and parallel G thread to ISO 228-1.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
