BSPP Male 60° Cone × BSPP Female Swivel 60° Cone
Rated working pressure: 10,000 PSI / 689 bar / 68.9 MPa*

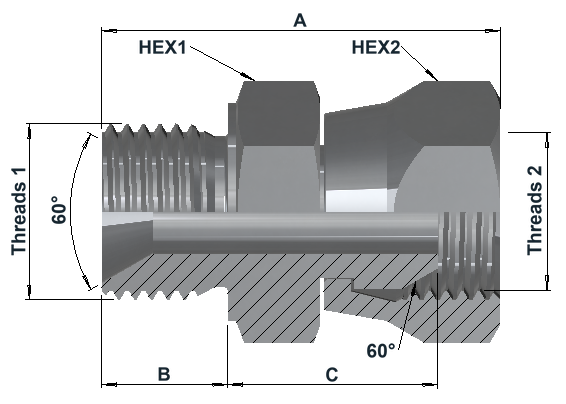

Dimensions & variants
Dimensions in mm
| Item number | BSPP Male | BSPP Female | A | B | C | Hex1 | Hex2 | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 6200040431610K | G 1/4" | G 1/4" | 37 | 11 | 19 | 19 | 19 | 0.043 |
| 6200040631610K | G 1/4" | G 3/8" | 40 | 11 | 23 | 19 | 22 | 0.064 |
| 6200040831610K | G 1/4" | G 1/2" | 44 | 11 | 24 | 22 | 30 | 0.123 |
| 6200060431610K | G 3/8" | G 1/4" | 39 | 12.5 | 20 | 22 | 19 | 0.057 |
| 6200060631610K | G 3/8" | G 3/8" | 42 | 12.5 | 23 | 22 | 22 | 0.077 |
| 6200060831610K | G 3/8" | G 1/2" | 44 | 12.5 | 24 | 22 | 30 | 0.138 |
| 6200080431610K | G 1/2" | G 1/4" | 46 | 15 | 24 | 27 | 22 | 0.089 |
| 6200080631610K | G 1/2" | G 3/8" | 46 | 15 | 24 | 27 | 22 | 0.106 |
| 6200080831610K | G 1/2" | G 1/2" | 47 | 15 | 25 | 27 | 30 | 0.169 |
| 6200081231610K | G 1/2" | G 3/4" | 50 | 15 | 25 | 27 | 36 | 0.200 |
| 6200120831610K | G 3/4" | G 1/2" | 51 | 17 | 27 | 32 | 30 | 0.215 |
| 6200121231610K | G 3/4" | G 3/4" | 54 | 17 | 27 | 32 | 36 | 0.270 |
| 6200121631610K | G 3/4" | G 1" | 54 | 17 | 27 | 32 | 46 | 0.380 |
| 6200161231610K | G 1" | G 3/4" | 58 | 19 | 29 | 41 | 36 | 0.350 |
| 6200161631610K | G 1" | G 1" | 58 | 19 | 29 | 41 | 46 | 0.390 |
Article number structure
6200 | 08 | 12 | 316 | 10KSeries | BSPP male thread code | BSPP female thread code | Material | Pressure class
Product specifications
| End 1 — BSPP Male | End 2 — BSPP Female Swivel | General product information |
|---|---|---|
|
|
|
Technical info
Connections
BSPP male side: Parallel G thread to ISO 228-1. The connection may be sealed either on the 60° internal cone to ISO 8434-6, or against the external shoulder using an elastomeric bonded seal to ISO 1179-2.
BSPP female side: Swivel female connection with 60° cone to ISO 8434-6 and parallel G thread to ISO 228-1.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
