BSPP Male 60° Cone × BSPP Female Fixed
Rated working pressure: 6,000 PSI / 414 bar / 41.4 MPa*

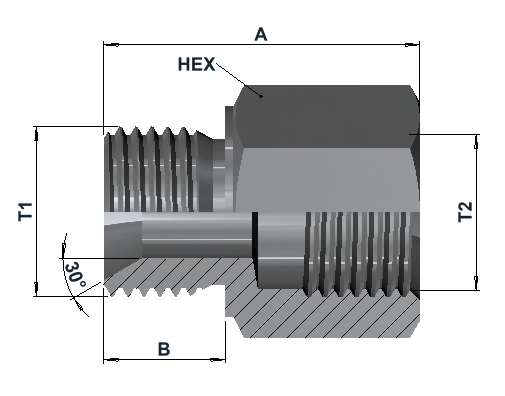

Dimensions & variants
Dimensions in mm
| Item number | BSPP Male | BSPP Female Fixed | A | B | Hex | Weight (kg) |
|---|---|---|---|---|---|---|
| 61000202316 | G 1/8" | G 1/8" | 27.5 | 8.5 | 14 | 0.019 |
| 61000204316 | G 1/8" | G 1/4" | 30 | 8.5 | 19 | 0.039 |
| 61000402316 | G 1/4" | G 1/8" | 29 | 11 | 19 | 0.042 |
| 61000404316 | G 1/4" | G 1/4" | 33 | 11 | 19 | 0.041 |
| 61000406316 | G 1/4" | G 3/8" | 35 | 11 | 22 | 0.052 |
| 61000408316 | G 1/4" | G 1/2" | 37 | 11 | 27 | 0.082 |
| 61000604316 | G 3/8" | G 1/4" | 35 | 12.5 | 22 | 0.066 |
| 61000606316 | G 3/8" | G 3/8" | 37 | 12.5 | 22 | 0.058 |
| 61000608316 | G 3/8" | G 1/2" | 39 | 12.5 | 27 | 0.092 |
| 61000804316 | G 1/2" | G 1/4" | 28 | 15 | 27 | 0.073 |
| 61000806316 | G 1/2" | G 3/8" | 39 | 15 | 27 | 0.106 |
| 61000808316 | G 1/2" | G 1/2" | 39 | 15 | 27 | 0.087 |
| 61000810316 | G 1/2" | G 5/8" | 40 | 15 | 30 | 0.105 |
| 61000812316 | G 1/2" | G 3/4" | 44 | 15 | 32 | 0.126 |
| 61000816316 | G 1/2" | G 1" | 46 | 15 | 41 | 0.210 |
| 61001008316 | G 5/8" | G 1/2" | 40 | 16 | 30 | 0.122 |
| 61001010316 | G 5/8" | G 5/8" | 41 | 16 | 30 | 0.110 |
| 61001012316 | G 5/8" | G 3/4" | 45 | 16 | 32 | 0.130 |
| 61001204316 | G 3/4" | G 1/4" | 30 | 16 | 32 | 0.121 |
| 61001206316 | G 3/4" | G 3/8" | 30 | 16 | 32 | 0.107 |
| 61001208316 | G 3/4" | G 1/2" | 41.5 | 16 | 32 | 0.150 |
| 61001210316 | G 3/4" | G 5/8" | 45 | 16 | 32 | 0.161 |
| 61001212316 | G 3/4" | G 3/4" | 45 | 16 | 32 | 0.135 |
| 61001216316 | G 3/4" | G 1" | 48 | 16 | 41 | 0.219 |
| 61001220316 | G 3/4" | G 1 1/4" | 54 | 16 | 50 | 0.320 |
| 61001604316 | G 1" | G 1/4" | 35 | 19 | 41 | 0.238 |
| 61001606316 | G 1" | G 3/8" | 35 | 19 | 41 | 0.228 |
| 61001608316 | G 1" | G 1/2" | 35 | 19 | 41 | 0.206 |
| 61001612316 | G 1" | G 3/4" | 45 | 19 | 41 | 0.260 |
| 61001616316 | G 1" | G 1" | 48 | 19 | 41 | 0.255 |
| 61001620316 | G 1" | G 1 1/4" | 56 | 19 | 50 | 0.368 |
| 61001624316 | G 1" | G 1 1/2" | 57 | 19 | 55 | 0.433 |
| 61002006316 | G 1 1/4" | G 3/8" | 39 | 22 | 50 | 0.410 |
| 61002008316 | G 1 1/4" | G 1/2" | 39 | 22 | 50 | 0.363 |
| 61002012316 | G 1 1/4" | G 3/4" | 39 | 22 | 55 | 0.323 |
| 61002016316 | G 1 1/4" | G 1" | 52 | 22 | 50 | 0.422 |
| 61002020316 | G 1 1/4" | G 1 1/4" | 55 | 22 | 50 | 0.386 |
| 61002024316 | G 1 1/4" | G 1 1/2" | 57 | 22 | 55 | 0.414 |
| 61002408316 | G 1 1/2" | G 1/2" | 40 | 22 | 55 | 0.492 |
| 61002412316 | G 1 1/2" | G 3/4" | 40 | 22 | 55 | 0.451 |
| 61002416316 | G 1 1/2" | G 1" | 40 | 22 | 55 | 0.423 |
| 61002420316 | G 1 1/2" | G 1 1/4" | 57 | 22 | 55 | 0.525 |
| 61002424316 | G 1 1/2" | G 1 1/2" | 57 | 22 | 55 | 0.438 |
| 61002432316 | G 1 1/2" | G 2" | 62 | 22 | 70 | 0.762 |
| 61003208316 | G 2" | G 1/2" | 47 | 26 | 70 | 0.913 |
| 61003212316 | G 2" | G 3/4" | 47 | 26 | 70 | 0.890 |
| 61003216316 | G 2" | G 1" | 47 | 26 | 70 | 0.835 |
| 61003220316 | G 2" | G 1 1/4" | 47 | 26 | 70 | 0.730 |
| 61003224316 | G 2" | G 1 1/2" | 64 | 26 | 70 | 1.046 |
| 61003232316 | G 2" | G 2" | 64 | 26 | 70 | 0.797 |
Article number structure
6100 | 12 | 08 | 316 | 6KSeries | BSPP male thread code | BSPP Female Fixed thread code | Material | Pressure class
Product specifications
| End 1 — BSPP Male | End 2 — BSPP Female Fixed | General product information |
|---|---|---|
|
|
|
Technical info
Connections
BSPP male side: Parallel G thread to ISO 228-1. The connection may be sealed either on the 60° internal cone to ISO 8434-6, or against the external shoulder using an elastomeric bonded seal to ISO 1179-2.
BSPP Female Fixed side: Parallel G thread to ISO 228-1. Sealing interface to ISO 1179-2.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
