BSPP Male 60° Cone × BSPP Female Fixed
Rated working pressure: 15,000 PSI / 1,034 bar / 103.4 MPa*

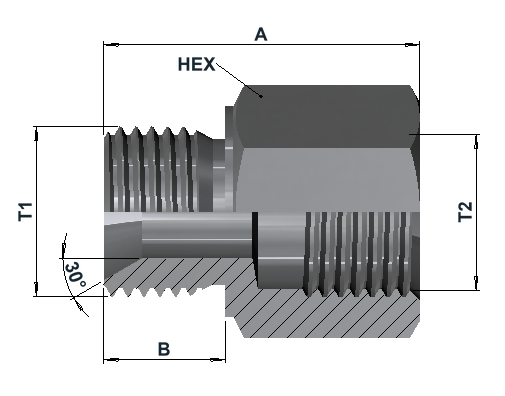

Dimensions & variants
Dimensions in mm
| Item number | BSPP Male | BSPP Female Fixed | A | B | Hex | Weight (kg) |
|---|---|---|---|---|---|---|
| 6100040431615K | G 1/4" | G 1/4" | 31 | 11 | 24 | 0.073 |
| 6100040631615K | G 1/4" | G 3/8" | 34 | 11 | 27 | 0.094 |
| 6100040831615K | G 1/4" | G 1/2" | 37 | 11 | 36 | 0.093 |
| 6100060431615K | G 3/8" | G 1/4" | 32 | 12.5 | 24 | 0.081 |
| 6100060631615K | G 3/8" | G 3/8" | 35 | 12.5 | 27 | 0.097 |
| 6100060831615K | G 3/8" | G 1/2" | 37 | 12.5 | 36 | 0.184 |
| 6100080431615K | G 1/2" | G 1/4" | 37 | 15 | 27 | 0.119 |
| 6100080631615K | G 1/2" | G 3/8" | 37 | 15 | 27 | 0.106 |
| 6100080831615K | G 1/2" | G 1/2" | 40 | 15 | 36 | 0.178 |
Article number structure
6100 | 04 | 06 | 316 | 15KSeries | BSPP male thread code | BSPP Female Fixed thread code | Material | Pressure class
Product specifications
| End 1 — BSPP Male | End 2 — BSPP Female Fixed | General product information |
|---|---|---|
|
|
|
Technical info
Connections
BSPP male side: Parallel G thread to ISO 228-1. The connection may be sealed either on the 60° internal cone to ISO 8434-6, or against the external shoulder using an elastomeric bonded seal to ISO 1179-2.
BSPP Female Fixed side: Parallel G thread to ISO 228-1.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
