PRODUCT GROUP64306K

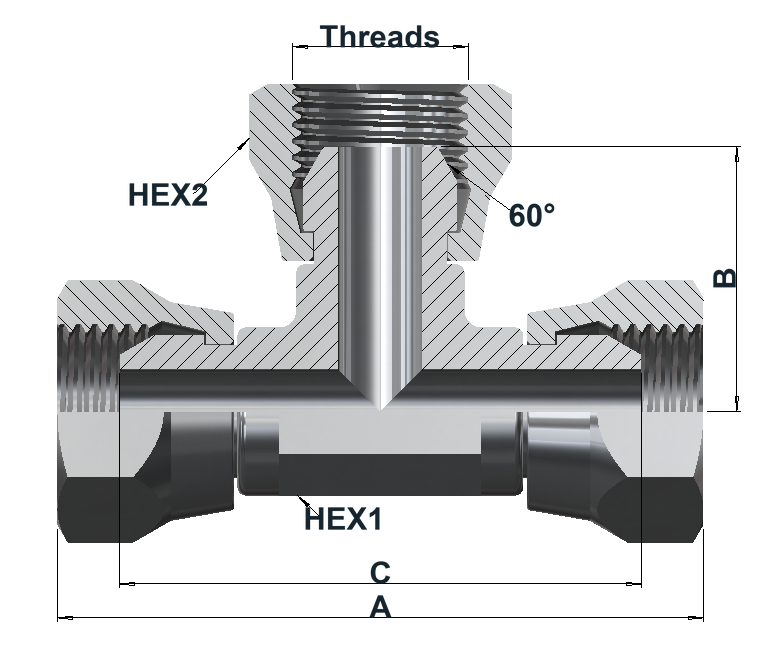

BSPP Female Swivel 60° Cone, Tee
ISO 8434-6
Rated working pressure: 6,000 PSI / 414 bar / 41.4 MPa*
Dimensions & variants
Dimensions in mm
| Item number | BSPP Female | A | B | C | Hex1 | Hex2 | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 64300404316 | G 1/4" | 66 | 26.5 | 53 | 16 | 19 | 0.113 |
| 64300606316 | G 3/8" | 66 | 26.5 | 53 | 16 | 22 | 0.154 |
| 64300808316 | G 1/2" | 77 | 31.5 | 63 | 20 | 27 | 0.260 |
| 64301212316 | G 3/4" | 103 | 41.5 | 83 | 28 | 32 | 0.475 |
| 64301616316 | G 1" | 114 | 47 | 94 | 34 | 41 | 0.776 |
| 64302020316 | G 1 1/4" | 130 | 52.5 | 105 | 44 | 50 | |
| 64302424316 | G 1 1/2" | 146 | 60 | 120 | 52 | 55 | |
| 64303232316 | G 2" | 174 | 71 | 142 | 62 | 70 |
Article number structure
6430 | 04 | 04 | 316 | 6KSeries | BSPP female thread code 1 | BSPP female thread code 2 | Material | Pressure class
Product specifications
| Ends 1–3 — BSPP Female Swivel | Configuration | General product information |
|---|---|---|
|
|
|
Technical info
Connections
BSPP female swivel ends: 60° cone swivel connections to ISO 8434-6 with parallel G threads to ISO 228-1. Equal tee configuration with identical connection size on all three ports.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
