PRODUCT GROUP643010K
BSPP Female Swivel 60° Cone, Tee
ISO 8434-6
Rated working pressure: 10,000 PSI / 689 bar / 68.9 MPa*

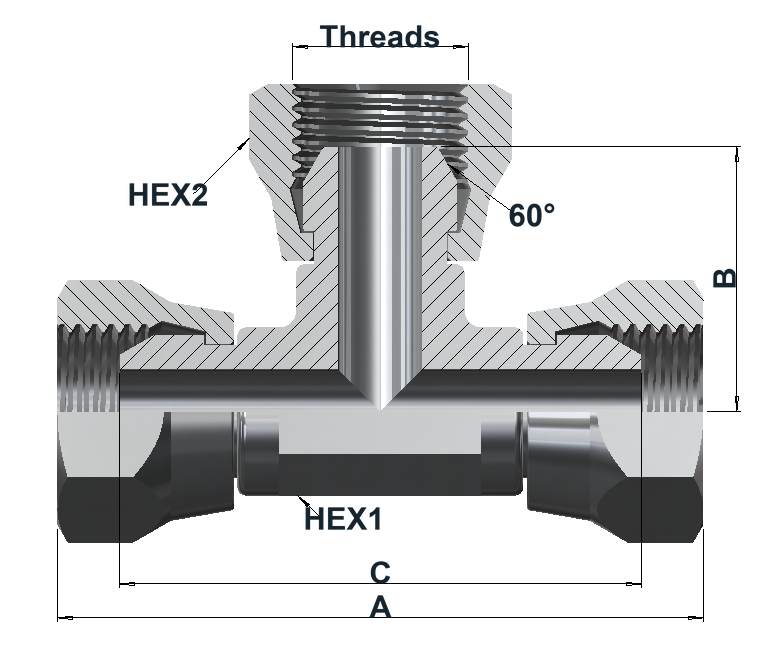

Dimensions & variants
Dimensions in mm
| Item number | BSPP Female | A | B | C | Hex1 | Hex2 | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 6430040431610K | G 1/4" | 66 | 26.5 | 53 | 16 | 19 | 0.113 |
| 6430060631610K | G 3/8" | 66 | 26.5 | 53 | 16 | 22 | 0.154 |
| 6430080831610K | G 1/2" | 77 | 31.5 | 63 | 20 | 30 | 0.381 |
| 6430121231610K | G 3/4" | 103 | 41.5 | 83 | 28 | 36 | 0.650 |
| 6430161631610K | G 1" | 114 | 47 | 94 | 34 | 46 | 1.080 |
Article number structure
6430 | 04 | 04 | 316 | 10KSeries | BSPP female thread code 1 | BSPP female thread code 2 | Material | Pressure class
Product specifications
| Ends 1–3 — BSPP Female Swivel | Configuration | General product information |
|---|---|---|
|
|
|
Technical info
Connections
BSPP female swivel ends: 60° cone swivel connections to ISO 8434-6 with parallel G threads to ISO 228-1. Equal tee configuration with identical connection size on all three ports.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
