PRODUCT GROUP98506K
BSPP Female 60° Cap
ISO 8434-6
Rated working pressure: 6,000 PSI / 414 bar / 41.4 MPa*

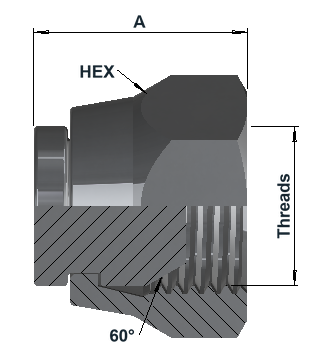

Dimensions & variants
Dimensions in mm
| Item number | BSPP Thread | A | Hex |
|---|---|---|---|
| 98500404316 | G 1/4" | 19 | 19 |
| 98500606316 | G 3/8" | 23 | 22 |
| 98500808316 | G 1/2" | 25 | 27 |
| 98501010316 | G 5/8" | 26 | 30 |
| 98501212316 | G 3/4" | 28 | 32 |
| 98501616316 | G 1" | 28 | 41 |
| 98502020316 | G 1 1/4" | 33 | 50 |
| 98502424316 | G 1 1/2" | 37 | 55 |
| 98503232316 | G 2" | 43 | 70 |
Article number structure
9850 | 12 | 12 | 316Series | BSPP thread code | BSPP thread code | Material
Product specifications
| Connection — BSPP Female | Configuration | General product information |
|---|---|---|
|
|
|
Technical info
Connections
BSPP female side: Parallel G thread to ISO 228-1 with 60° sealing cone to ISO 8434-6. Cap configuration for closing a mating BSPP male 60° cone connection.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
