BSPP Female 60° Cap

ISO 8434-6

Rated working pressure: 10,000 PSI / 689 bar / 68.9 MPa*

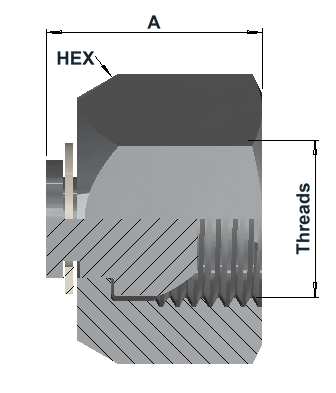

9850 10K BSPP Female 60° Cap dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	BSPP Thread	A	Hex
9850040431610K	G 1/4"	19	19
9850060631610K	G 3/8"	23	22
9850080831610K	G 1/2"	25	32
9850121231610K	G 3/4"	28	36
9850161631610K	G 1"	28	46

Article number structure

9850 | 12 | 12 | 316 | 10K

Series | BSPP thread code | BSPP thread code | Material | Pressure class

Download Datasheet

Product specifications

Connection — BSPP Female	Configuration	General product information
Type BSPP Female Sealing 60° cone Connection standards ISO 8434-6 Thread standard ISO 228-1	Type Cap Connections One threaded port Sizes See dimensions	Material: AISI 316L / EN 1.4404 / UNS S31603 Working pressure 10,000 PSI / 689 bar / 68.9 MPa* HS code 73079900 Country of origin Norway

Technical info

Connections

BSPP female side: Parallel G thread to ISO 228-1 with 60° sealing cone to ISO 8434-6. Cap configuration for closing a mating BSPP male 60° cone connection.

Working pressure basis*

The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.

IM-9850-10K · HTML DRAFT 01
Layout example based on the group 9850 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
