PRODUCT GROUP63306K
BSPP Female Fixed, Tee
ISO 1179-2
Rated working pressure: 6,000 PSI / 414 bar / 41.4 MPa*

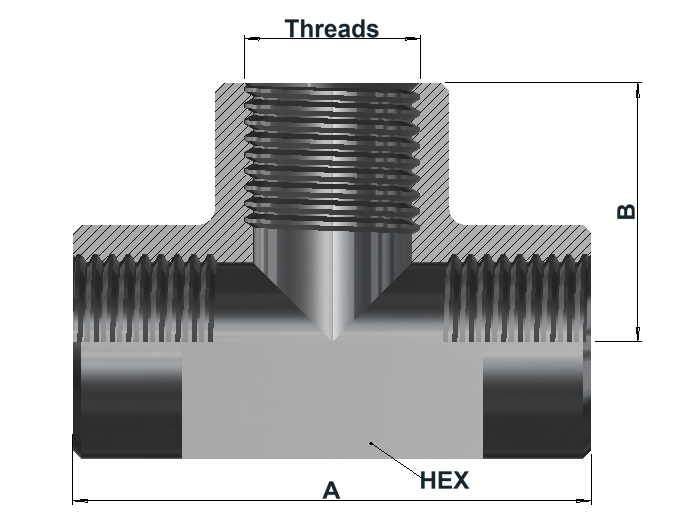

Dimensions & variants
Dimensions in mm
| Item number | BSPP Female Fixed | A | B | Hex | Weight (kg) |
|---|---|---|---|---|---|
| 63300202316 | G 1/8" | 44 | 22 | 16 | 0.064 |
| 63300404316 | G 1/4" | 48 | 24 | 20 | 0.098 |
| 63300606316 | G 3/8" | 52 | 26 | 23 | 0.124 |
| 63300808316 | G 1/2" | 62 | 31 | 28 | 0.199 |
| 63301212316 | G 3/4" | 74 | 37 | 34 | 0.324 |
| 63301616316 | G 1" | 84 | 42 | 44 | 0.641 |
| 63302020316 | G 1 1/4" | 98 | 49 | 52 | 1.270 |
| 63302424316 | G 1 1/2" | 120 | 60 | 62 | 1.774 |
Article number structure
6330 | 04 | 04 | 316 | 6KSeries | BSPP Female Fixed thread code 1 | BSPP Female Fixed thread code 2 | Material | Pressure class
Product specifications
| Ends 1–3 — BSPP Female Fixed | Configuration | General product information |
|---|---|---|
|
|
|
Technical info
Connections
BSPP Female Fixed ends: Parallel G threads to ISO 228-1 with sealing interfaces to ISO 1179-2. Equal tee configuration with identical connection size on all three ports.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
