BSPP Female Fixed, Tee

ISO 1179-2

Rated working pressure: 15,000 PSI / 1,034 bar / 103.4 MPa*

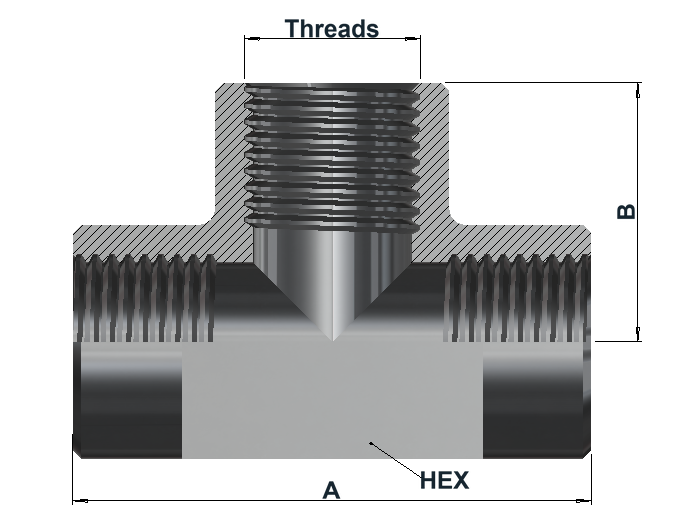

6330 15K BSPP Female Fixed, Tee dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	BSPP Female Fixed	A	B	Hex	Weight (kg)
6330040431615K	G 1/4"	52	26	23	0.183
6330060631615K	G 3/8"	62	31	28	0.278
6330080831615K	G 1/2"	74	37	34	0.492
6330121231615K	G 3/4"	84	42	44	0.912

Article number structure

6330 | 04 | 04 | 316 | 15K

Series | BSPP Female Fixed thread code 1 | BSPP Female Fixed thread code 2 | Material | Pressure class

Download Datasheet

Product specifications

Ends 1–3 — BSPP Female Fixed	Configuration	General product information
Type BSPP Female Fixed Sealing ISO 1179-2 sealing interface Connection standards ISO 1179-2 Thread standard ISO 228-1	Type Tee Connections Three threaded ports Sizes See dimensions	Material: AISI 316L / EN 1.4404 / UNS S31603 Working pressure 15,000 PSI / 1,034 bar / 103.4 MPa* HS code 73079900 Country of origin Norway

Technical info

Connections

BSPP Female Fixed ends: Parallel G threads to ISO 228-1. Equal tee configuration with identical connection size on all three ports.

Working pressure basis*

The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.

IM-6330-15K · HTML DRAFT 01
Layout example based on the group 6330 datasheet.
Information may contain errors or omissions and is subject to change without notice. Verify current specifications and suitability for the intended application before use. Contact Intermec if any information is unclear or inconsistent.
