BSPP Female Fixed, Tee

ISO 1179-2

Rated working pressure: 10,000 PSI / 689 bar / 68.9 MPa*

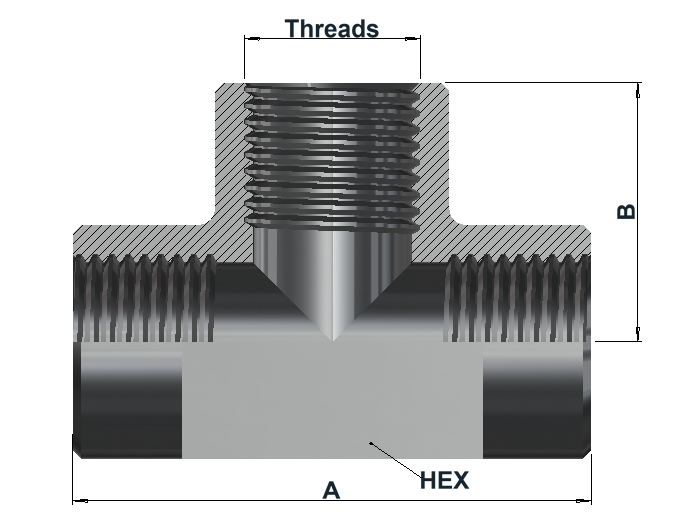

6330 10K BSPP Female Fixed, Tee dimensional drawing

Dimensions & variants

Dimensions in mm

Item number	BSPP Female Fixed	A	B	Hex	Weight (kg)
6330161631610K	G 1"	98	49	52	1.400

Article number structure

6330 | 16 | 16 | 316 | 10K

Series | BSPP Female Fixed thread code 1 | BSPP Female Fixed thread code 2 | Material | Pressure class

Download Datasheet

Product specifications

Ends 1–3 — BSPP Female Fixed	Configuration	General product information
Type BSPP Female Fixed Sealing ISO 1179-2 sealing interface Connection standards ISO 1179-2 Thread standard ISO 228-1	Type Tee Connections Three threaded ports Sizes See dimensions	Material: AISI 316L / EN 1.4404 / UNS S31603 Working pressure 10,000 PSI / 689 bar / 68.9 MPa* HS code 73079900 Country of origin Norway

Technical info

Connections

BSPP Female Fixed ends: Parallel G threads to ISO 228-1 with sealing interfaces to ISO 1179-2. Equal tee configuration with identical connection size on all three ports.

Working pressure basis*

The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
