PRODUCT GROUP810010K
BSPP Female Fixed × NPT Female
ISO 1179-2ASME B1.20.1
Rated working pressure: 10,000 PSI / 689 bar / 68.9 MPa*

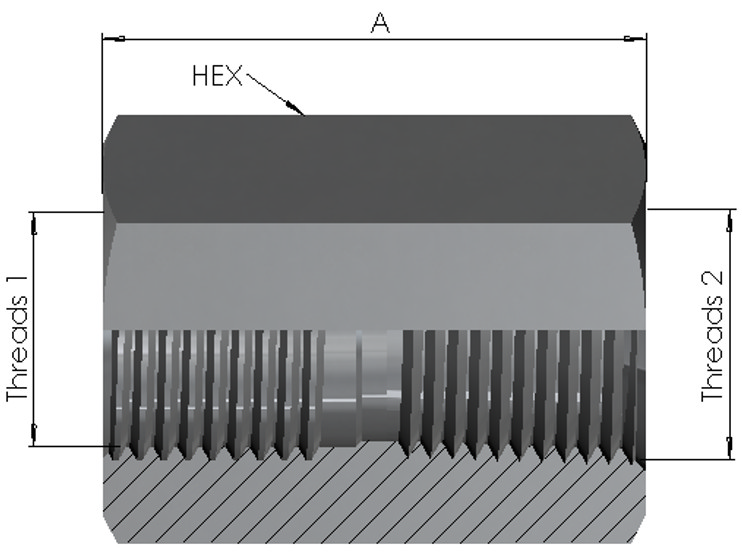

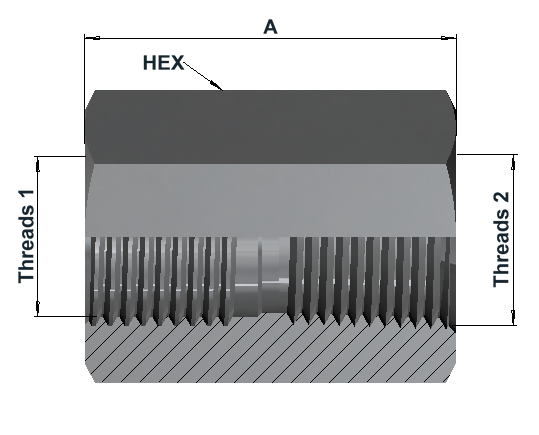

Dimensions & variants
Dimensions in mm
| Item number | BSPP Female Fixed | NPT Female | A | Hex | Weight (kg) |
|---|---|---|---|---|---|
| 8100040431610K | G 1/4" | 1/4"NPT | 34 | 22 | 0.066 |
| 8100040631610K | G 1/4" | 3/8"NPT | 34 | 24 | 0.091 |
| 8100040831610K | G 1/4" | 1/2"NPT | 40 | 32 | 0.230 |
| 8100060431610K | G 3/8" | 1/4"NPT | 34 | 24 | 0.100 |
| 8100060631610K | G 3/8" | 3/8"NPT | 36 | 24 | 0.088 |
| 8100060831610K | G 3/8" | 1/2"NPT | 42 | 32 | 0.215 |
| 8100080431610K | G 1/2" | 1/4"NPT | 38 | 32 | 0.172 |
| 8100080631610K | G 1/2" | 3/8"NPT | 39 | 32 | 0.215 |
| 8100080831610K | G 1/2" | 1/2"NPT | 43 | 32 | 0.210 |
| 8100081231610K | G 1/2" | 3/4"NPT | 48 | 41 | 0.410 |
| 8100081631610K | G 1/2" | 1"NPT | 52 | 50 | 0.690 |
| 8100120831610K | G 3/4" | 1/2"NPT | 46 | 41 | 0.410 |
| 8100121231610K | G 3/4" | 3/4"NPT | 46 | 41 | 0.360 |
| 8100121631610K | G 3/4" | 1"NPT | 54 | 50 | 0.660 |
| 8100160831610K | G 1" | 1/2"NPT | 50 | 50 | 0.690 |
| 8100161231610K | G 1" | 3/4"NPT | 52 | 50 | 0.660 |
| 8100161631610K | G 1" | 1"NPT | 52 | 50 | 0.600 |
Article number structure
8100 | 08 | 12 | 316 | 10KSeries | BSPP Female Fixed thread code | NPT female thread code | Material | Pressure class
Product specifications
| End 1 — BSPP Female Fixed | End 2 — NPT Female | General product information |
|---|---|---|
|
|
|
Technical info
Connections
BSPP Female Fixed side: Fixed female connection with sealing interface to ISO 1179-2 and parallel G thread to ISO 228-1.
NPT female side: Tapered pipe thread to ASME B1.20.1.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
