PRODUCT GROUP985110K
BSPP Female Fixed Cap
ISO 1179-2
Rated working pressure: 10,000 PSI / 689 bar / 68.9 MPa*

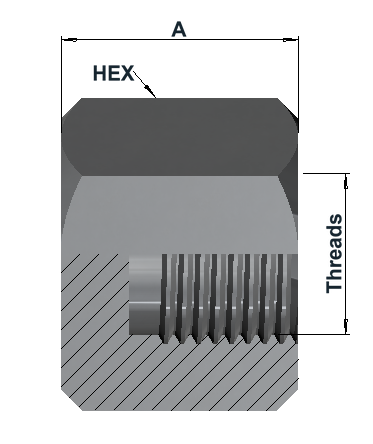

Dimensions & variants
Dimensions in mm
| Item number | BSPP Thread | A | Hex |
|---|---|---|---|
| 9851040431610K | G 1/4" | 20 | 22 |
| 9851060631610K | G 3/8" | 23 | 24 |
| 9851080831610K | G 1/2" | 28 | 32 |
| 9851121231610K | G 3/4" | 30 | 41 |
| 9851161631610K | G 1" | 33 | 50 |
Article number structure
9851 | 12 | 12 | 316 | 10KSeries | BSPP thread code | BSPP thread code | Material | Pressure class
Product specifications
| Connection — BSPP Female Fixed | Configuration | General product information |
|---|---|---|
|
|
|
Technical info
Connections
BSPP Female Fixed side: Fixed parallel G thread to ISO 1179-2 / ISO 228-1. Cap configuration for closing a mating BSPP male connection.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
